Lashing EquipmentBinder chain Grade 70, 80Available

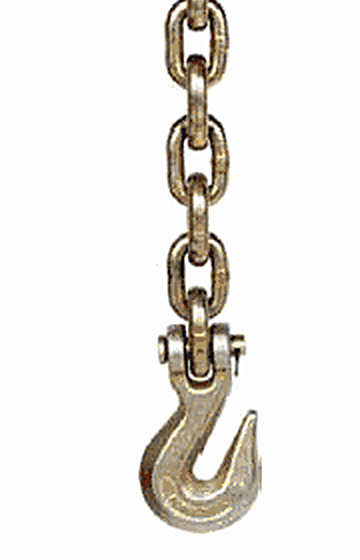

Binder Chain Grade 70 / 80
WLL 1.5 - 5.3 t
· ABLE

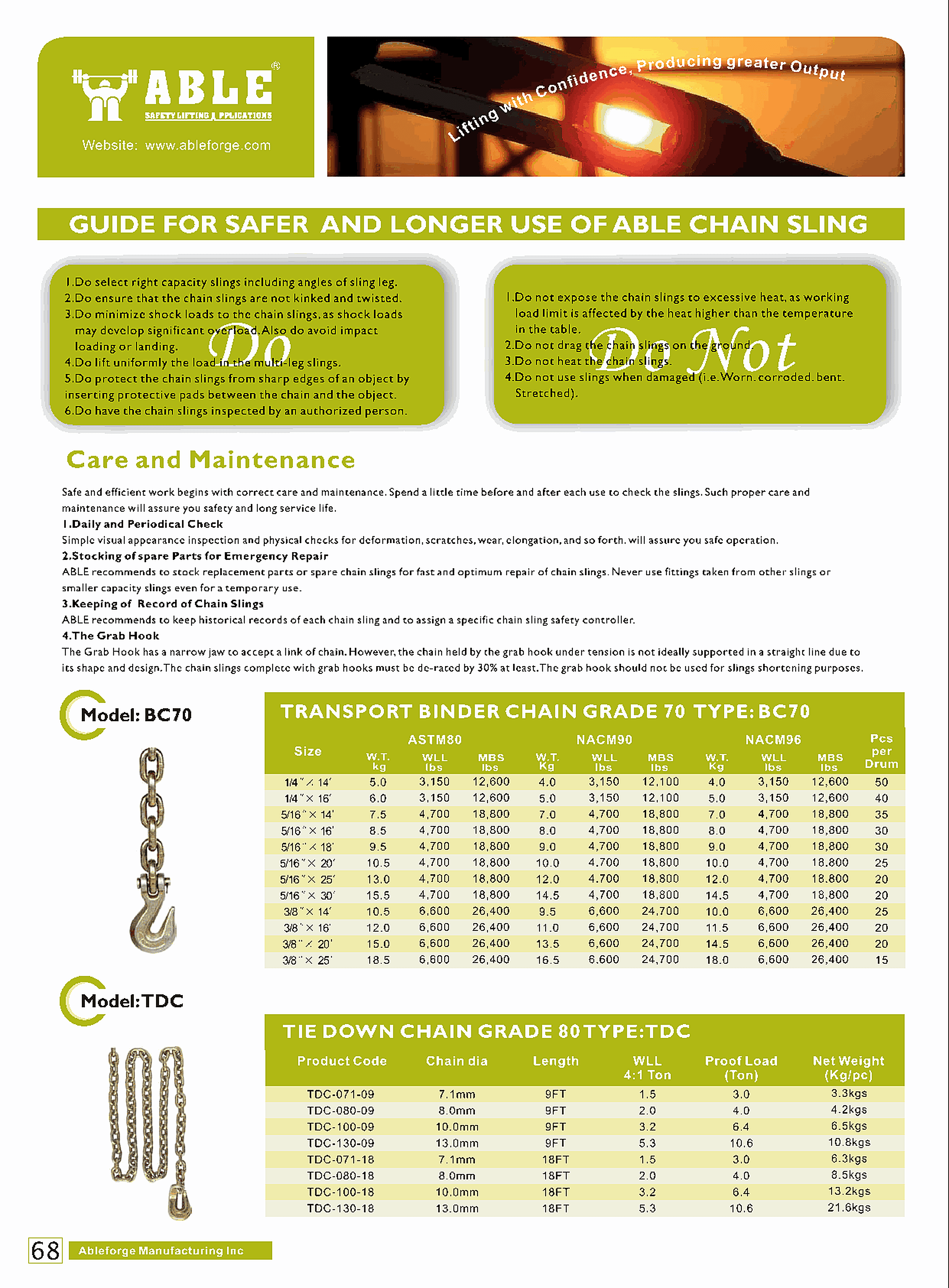

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Load-restraint chain for securing cargo on trucks, trailers, flatbeds and rail. Available as Grade 70 Transport Binder Chain (Type BC70) complete with clevis grab hooks — WLL 3,150–6,600 lb (MBS 12,600–26,400 lb) in 1/4″–3/8″ sizes — and as Grade 80 Tie-Down Chain (Type TDC) in 7.1–13.0 mm, WLL 1.5–5.3 t at a 4:1 design factor with proof load to twice the working load. Heat-treated alloy links resist wear and shock loading. Manufactured and rated to ASTM/NACM (BC70) and EN Grade 80 (TDC). Note: chains fitted with grab hooks must be de-rated by at least 30%.
Specifications
- Category
- Lashing Equipment
- Subcategory
- Binder chain Grade 70, 80
- WLL / Range
- WLL 1.5 - 5.3 t
- Grade 70 model
- BC70 — Transport Binder Chain c/w grab hooks
- BC70 sizes
- 1/4″ · 5/16″ · 3/8″
- BC70 WLL
- 3,150 – 6,600 lb
- BC70 breaking strength (MBS)
- 12,600 – 26,400 lb
- BC70 standards
- ASTM80 / NACM90 / NACM96
- Grade 80 model
- TDC — Tie-Down Chain
- TDC chain dia
- 7.1 / 8.0 / 10.0 / 13.0 mm
- TDC WLL (4:1)
- 1.5 / 2.0 / 3.2 / 5.3 t
- TDC proof load
- 3.0 / 4.0 / 6.4 / 10.6 t
- TDC lengths
- 9 ft / 18 ft
- End fitting
- Clevis grab hook (de-rate 30% when fitted)
- Brand
- ABLE
- Standards / Certifications
- ASTM / NACM (Grade 70)EN 818-2 Grade 80
