Brake Hand Winch
Catalogue detail

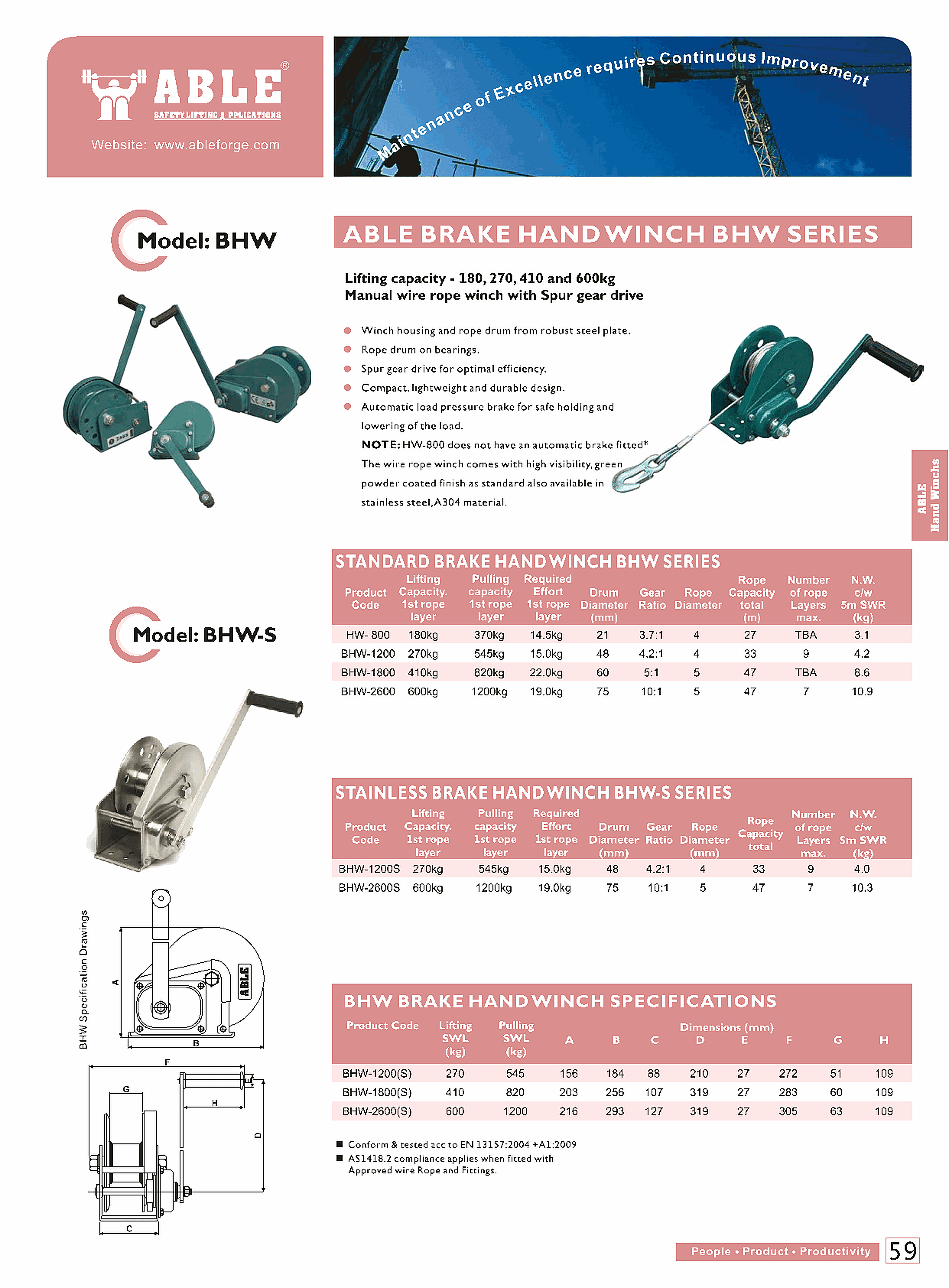

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description

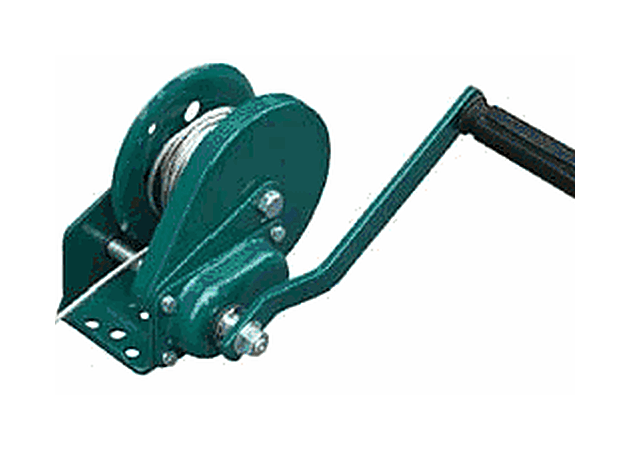

ABLE BHW series manual wire-rope hand winch with spur-gear drive and an automatic load-pressure brake for safe holding and lowering of the load. Lifting capacity 180, 270, 410 and 600 kg (pulling capacity up to 1,200 kg); the winch housing and rope drum are pressed from robust steel plate, with the drum running on bearings. Supplied in a high-visibility green powder-coated finish as standard, or in A304 stainless steel (Model BHW-S). Conforms to and tested per EN 13157:2004+A1:2009, with AS 1418.2 compliance when fitted with approved wire rope and fittings. Note: model HW-800 is supplied without an automatic brake.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Manual Hand Winch
- WLL / Range
- WLL 180 - 600 kg
- Type
- Manual wire-rope hand winch · spur-gear drive
- Models
- BHW-1200 / 1800 / 2600 (BHW-S stainless)
- Lifting capacity
- 180 / 270 / 410 / 600 kg
- Pulling capacity
- 370 / 545 / 820 / 1,200 kg
- Brake
- Automatic load-pressure brake (not on HW-800)
- Gear ratio
- 3.7:1 – 10:1
- Drum
- On bearings · robust steel plate
- Finish
- Green powder-coat (or A304 stainless — BHW-S)
- Standard
- EN 13157:2004+A1:2009 · AS 1418.2
- Part Number
- BHW
- Brand
- ABLE
- Standards / Certifications
- EN 13157+A1:2009AS 1418.2Auto brake
