Lashing EquipmentCargo Lashing beltAvailable
Cargo Lashing Straps
WLL 0.5 - 5 t
Part No. RST· ABLE

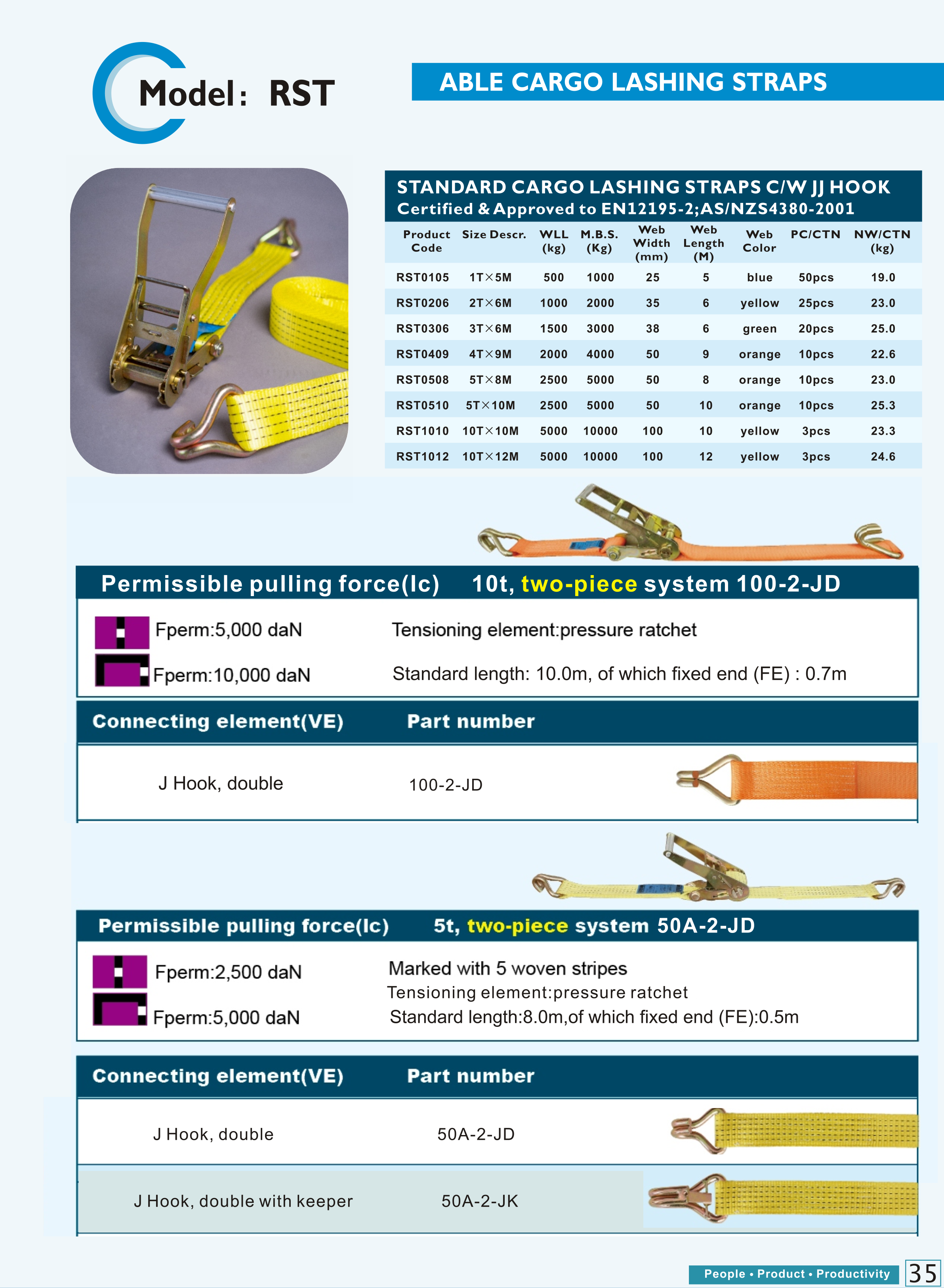

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Ratchet cargo lashing straps for securing loads in road, rail, sea and air transport. Two-piece system with a pressure-ratchet tensioning element and double J-hook (JJ) end fittings, on colour-coded polyester webbing with a stitched capacity label. Lashing capacity (LC) from 500 to 5,000 daN, with breaking strength twice the working load. The range covers 25–100 mm web widths and 5–12 m lengths in eight standard sizes. Certified and approved to EN 12195-2 and AS/NZS 4380-2001.
Specifications
- Category
- Lashing Equipment
- Subcategory
- Cargo Lashing belt
- WLL / Range
- WLL 0.5 - 5 t
- Model
- RST series
- Type
- Two-piece ratchet lashing strap c/w double J-hook
- Lashing capacity (LC)
- 500 – 5,000 daN (0.5 – 5 t)
- Breaking strength (MBS)
- 1,000 – 10,000 kg
- Tensioning element
- Pressure ratchet
- Web width
- 25 / 35 / 38 / 50 / 100 mm
- Web length
- 5 – 12 m (standard)
- Webbing
- Polyester, colour-coded (blue / yellow / green / orange)
- End fitting
- Double J-hook (JJ)
- Standard sizes
- RST0105 · RST0206 · RST0306 · RST0409 · RST0508 · RST0510 · RST1010 · RST1012
- Part Number
- RST
- Brand
- ABLE
- Standards / Certifications
- EN 12195-2AS/NZS 4380-2001
