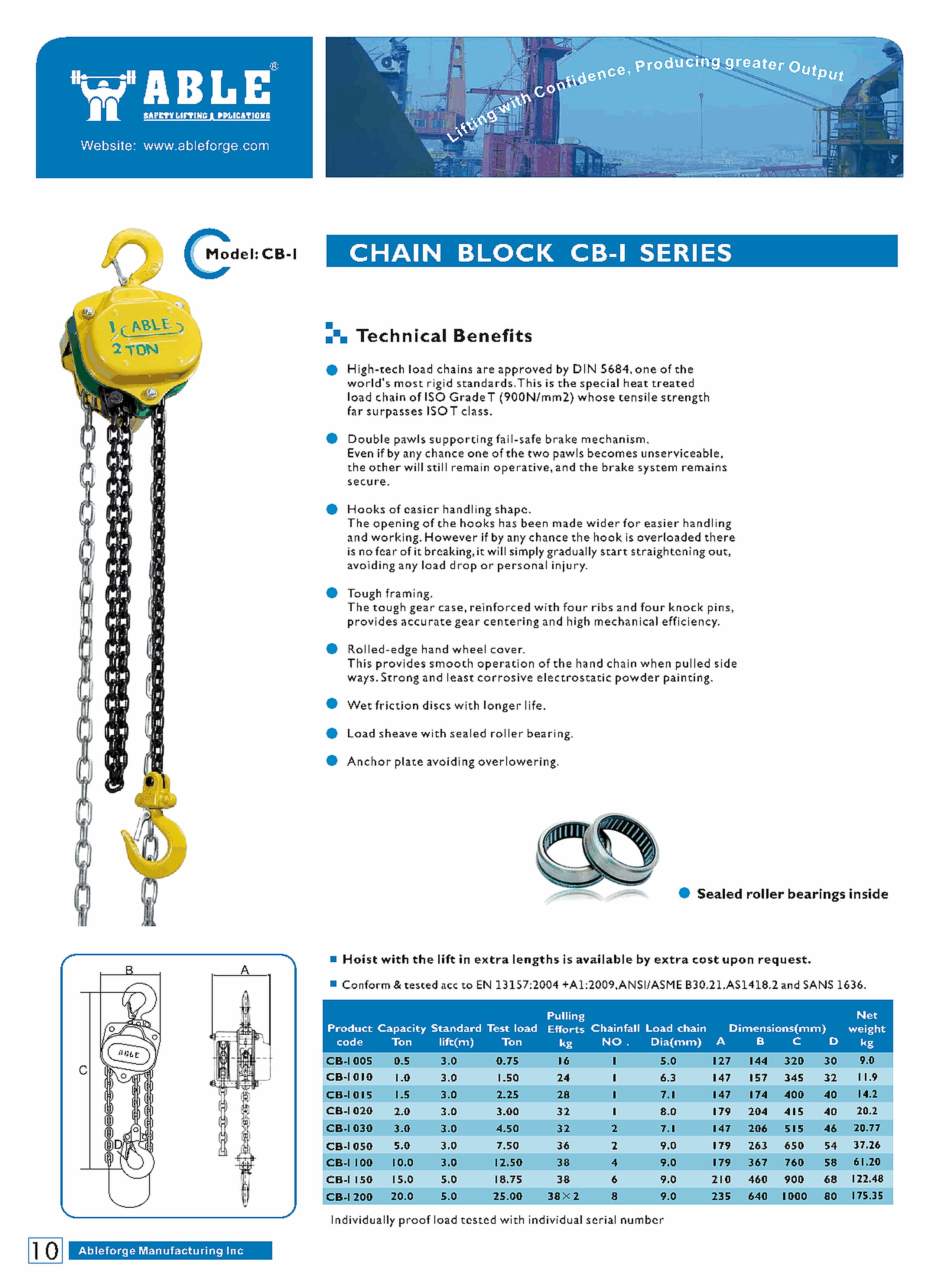

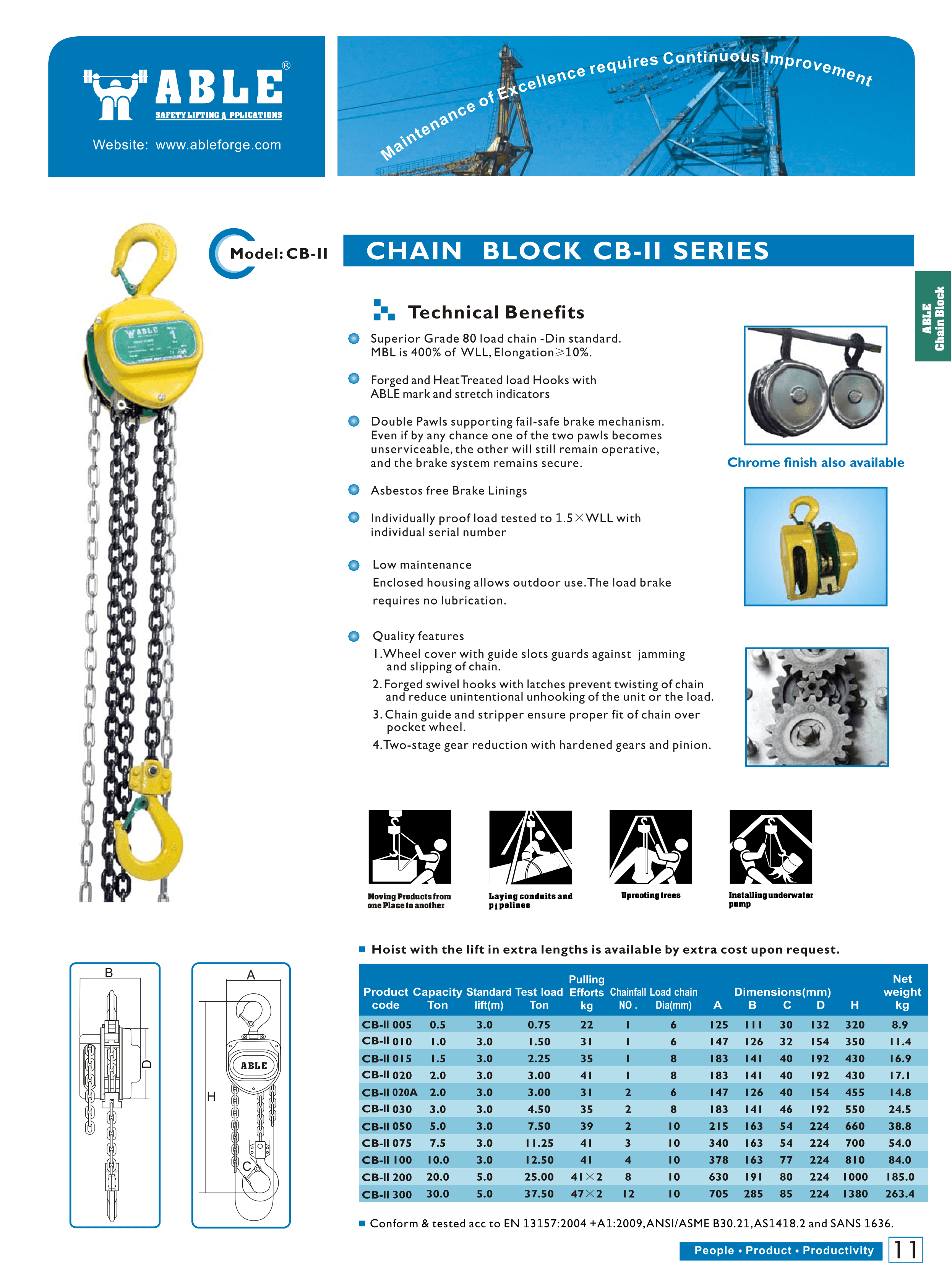

Chain Block CB-I / CB-II Series
Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE CB-I series chain block (manual chain hoist) for general and heavy lifting. The heat-treated ISO Grade T (900 N/mm²) load chain is approved to DIN 5684, and a fail-safe double-pawl brake keeps the load secure even if one pawl fails. Wider, easier-handling hooks yield rather than break under overload; the ribbed gear case gives accurate gear centering, and the load sheave runs on sealed roller bearings with wet friction discs for long life. Individually proof-load tested with a serial number. Conforms to EN 13157:2004+A1:2009, ANSI/ASME B30.21, AS 1418.2 and SANS 1636. WLL 0.5–20 t, standard lift 3 m.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Chain hoist
- WLL / Range
- WLL 0.5 - 30 t
- Type
- Manual chain block / chain hoist
- Load chain
- ISO Grade T (900 N/mm²), DIN 5684
- Brake
- Fail-safe double pawl
- Bearings
- Load sheave on sealed roller bearings
- Standard lift
- 3 m (extra on request)
- Testing
- Individually proof-load tested, serial number
- Standard
- EN 13157 · ANSI/ASME B30.21 · AS 1418.2 · SANS 1636
- WLL range
- 0.5 – 20 t
- Part Number
- CB-I / CB-II
- Brand
- ABLE
- Standards / Certifications
- EN 13157ASME B30.21AS 1418.2SANS 1636
