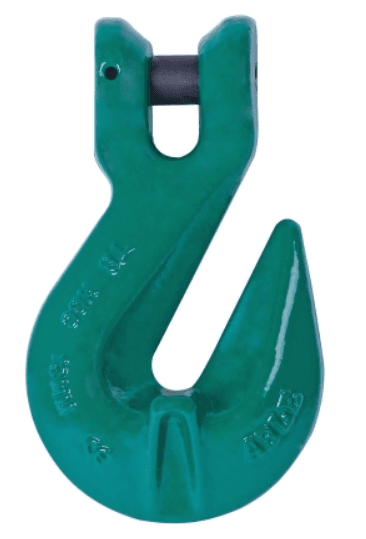

Clevis Grab Hook

Description

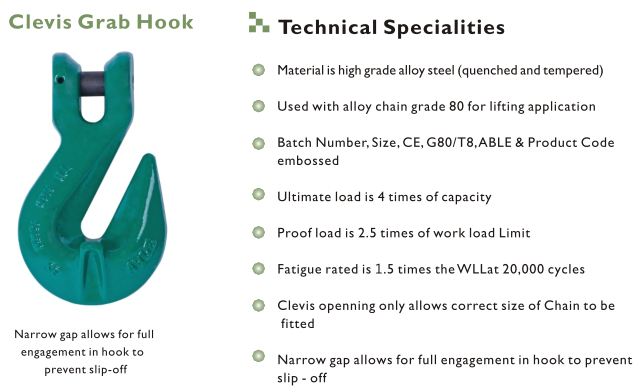

The HGC Clevis Grab Hook is specifically engineered to be used with Grade 80 alloy lifting chains. Its narrow clevis opening ensures that only the correct chain size can be fitted, allowing full engagement between the hook and chain to prevent accidental slip-off during lifting operations. Material: High-grade alloy steel, quenched and tempered Chain Compatibility: Designed for use with Grade 80 alloy lifting chains Marking: Batch number, size, CE marking, G80/T8, manufacturer identification, and product code embossed on the hook Ultimate Load: 4 times the rated working load capacity Proof Load: 2.5 times the Working Load Limit (WLL) Fatigue Rating: 1.5 times the WLL for 20,000 load cycles Design Feature: Narrow clevis opening allows only the correct chain size to be fitted Safety Feature: Full engagement of the chain in the hook helps prevent slip-off during lifting

Specifications

Category

Fittings

Subcategory

Hook

WLL / Range

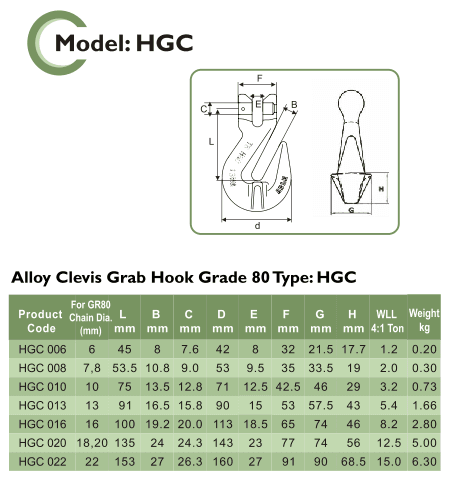

WLL 1.2 - 15 t

Material

Material is high grade alloy steel (quenched and tempered)

Used with alloy chain

Used with alloy chain grade 80 for lifting application

Specifications

Batch Number, Size, CE, G80/T8, ABLE & Product Code embossed

Ultimate load

Ultimate load is 4 times of capacity

Proof load

Proof load is 2.5 times of work load limit

Fatigue rated

Fatigue rated is 1.5 times the WLL at 20,000 cycles

Clevis

Clevis opening only allows correct size of chain to be fitted

Narrow gap

Narrow gap allows for full engagement in hook to prevent slip-off

Part Number

HGC

Brand

ABLE

Standards / Certifications

CE MarkingG80 (Grade 80) StandardT8 StandardBatch Number MarkingSize MarkingProduct Code EmbossingMaterial: High Grade Alloy Steel (Quenched and Tempered)Used with Alloy Chain Grade 80 for Lifting ApplicationsUltimate Load: 4 Times of Working Load CapacityProof Load: 2.5 Times of Working Load Limit (WLL)Fatigue Rated: 1.5 Times of WLL at 20,000 Cycles
