Crane Compacted Non-Rotating Wire Rope
Catalogue detail

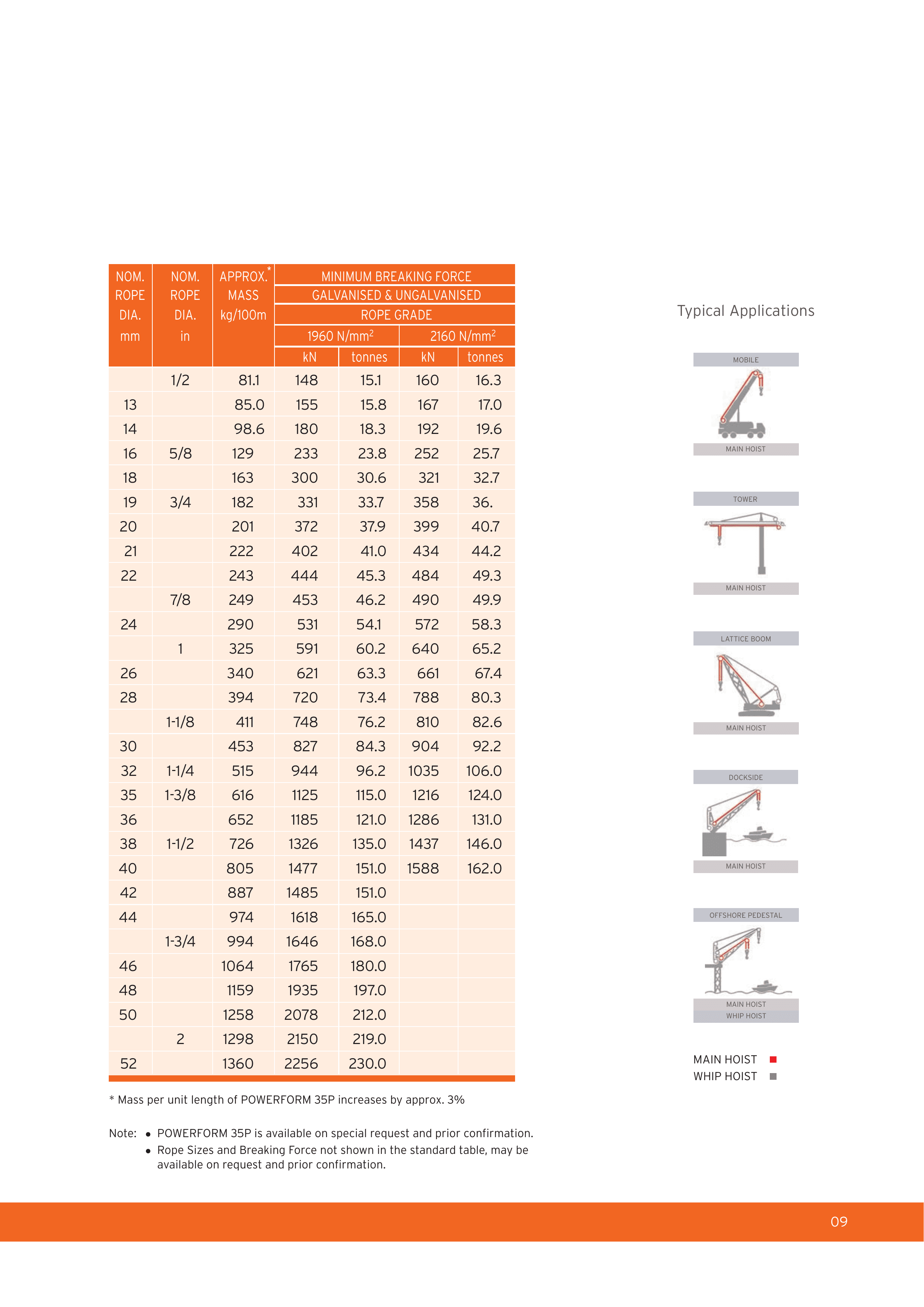

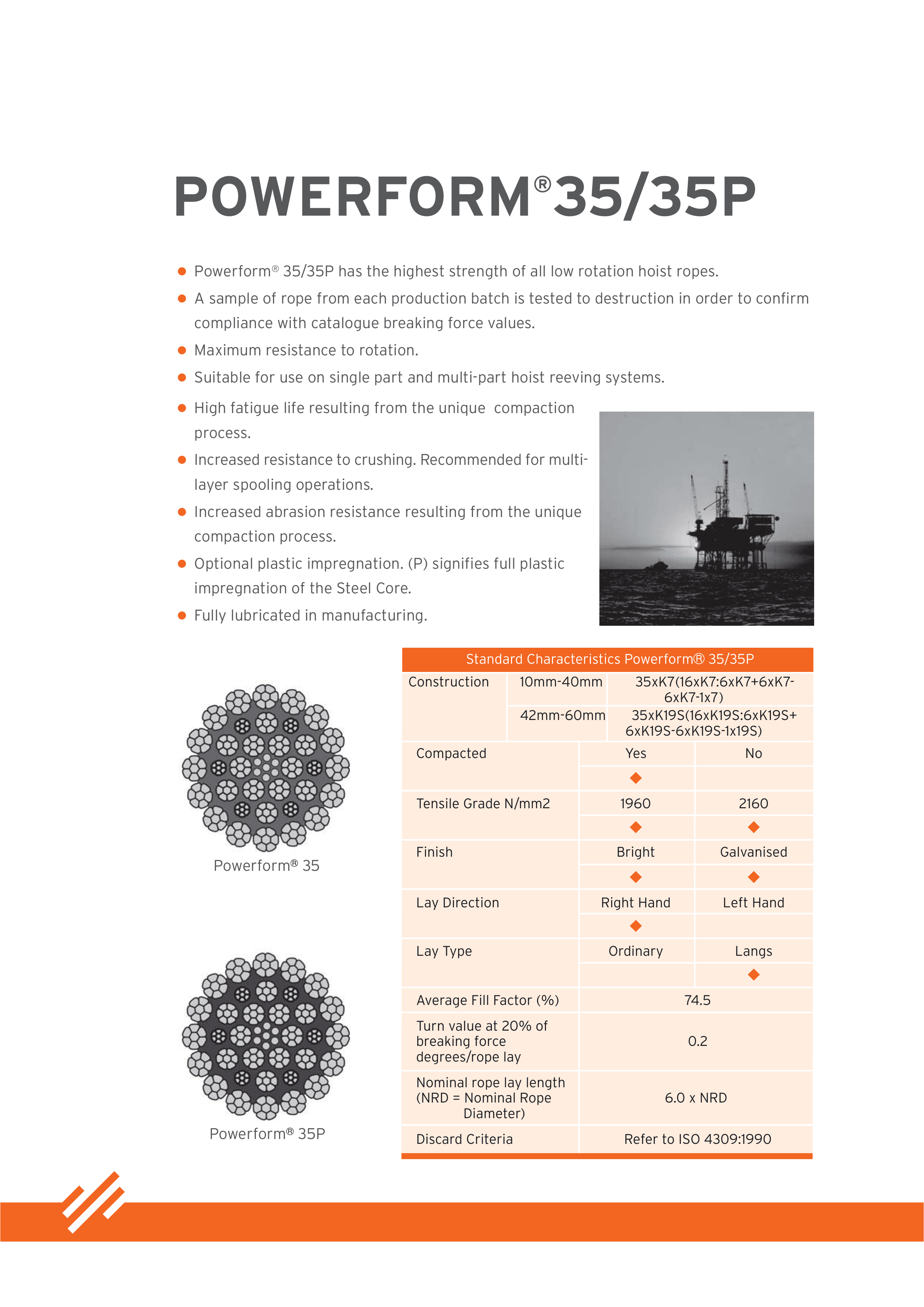

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description

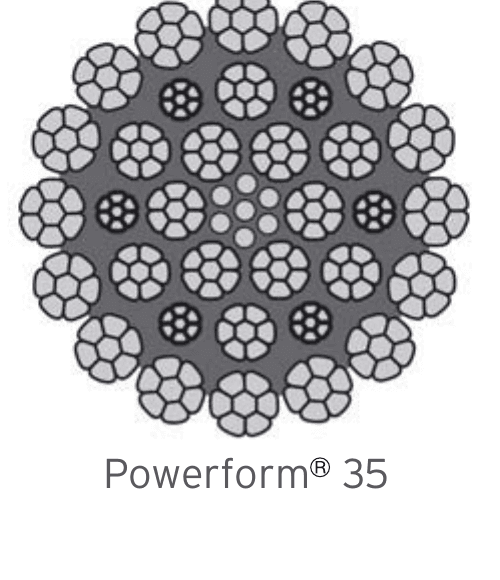

Powerform® 35 / 35P — a compacted (swaged), rotation-resistant crane hoist rope offering the highest strength of all low-rotation hoist ropes. The 35×K7 / 35×K19S compacted construction delivers maximum resistance to rotation, high fatigue life and excellent crushing and abrasion resistance, making it suited to single- and multi-part hoist reeving and multi-layer spooling. Available bright or galvanized in 1960 or 2160 N/mm² tensile grades; the 'P' variant adds full plastic impregnation of the steel core. Fully lubricated in manufacture, and every production batch is sample-tested to destruction to confirm catalogue breaking forces. Discard criteria to ISO 4309.
Specifications
- Category
- Steel Wire Rope
- Subcategory
- Crane compacted non-rotating (35x7 / 19x7 / 4x39)
- WLL / Range
- Ø 13 – 52 mm · MBF up to 230 t
- Type
- Compacted rotation-resistant crane hoist rope
- Construction
- 35×K7 (10–40 mm) · 35×K19S (42–60 mm)
- Compacted
- Yes (swaged)
- Tensile grade
- 1960 or 2160 N/mm²
- Finish
- Bright or galvanized
- Rotation resistance
- Maximum — low rotation
- Fill factor
- 74.5% (average)
- Rope lay length
- 6.0 × nominal rope Ø
- Plastic impregnation
- Optional — 35P, full steel-core impregnation
- Discard criteria
- ISO 4309:1990
- Standards / Certifications
- ISO 4309:19901960 / 2160 N/mm²
