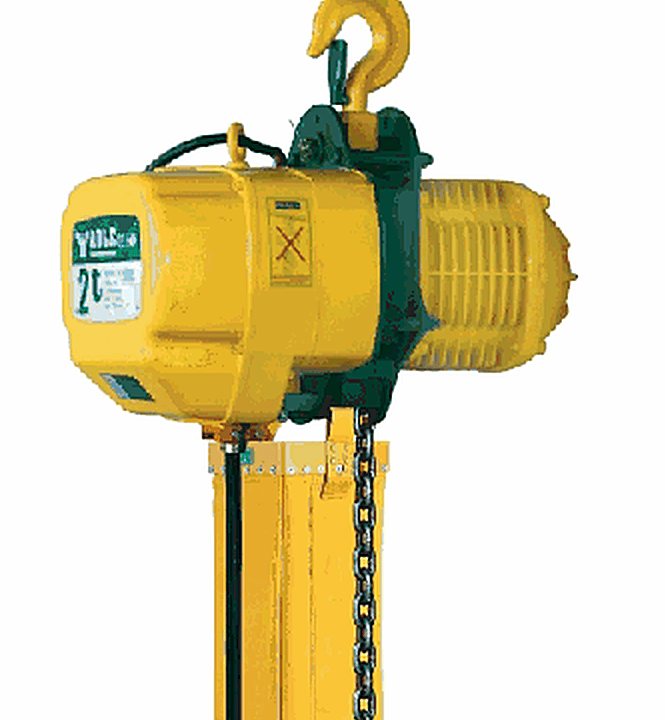

Electric Chain Hoist
Catalogue detail

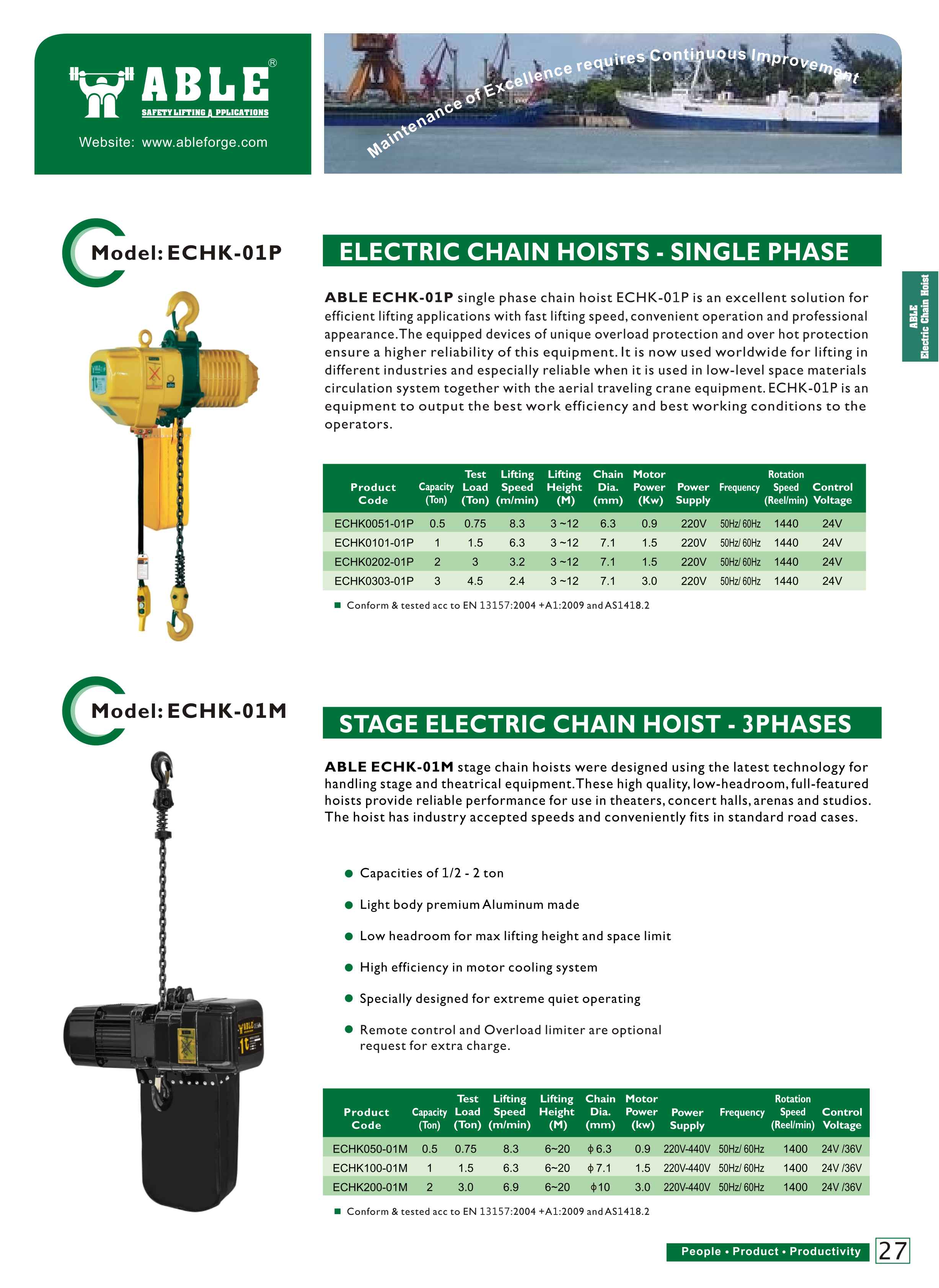

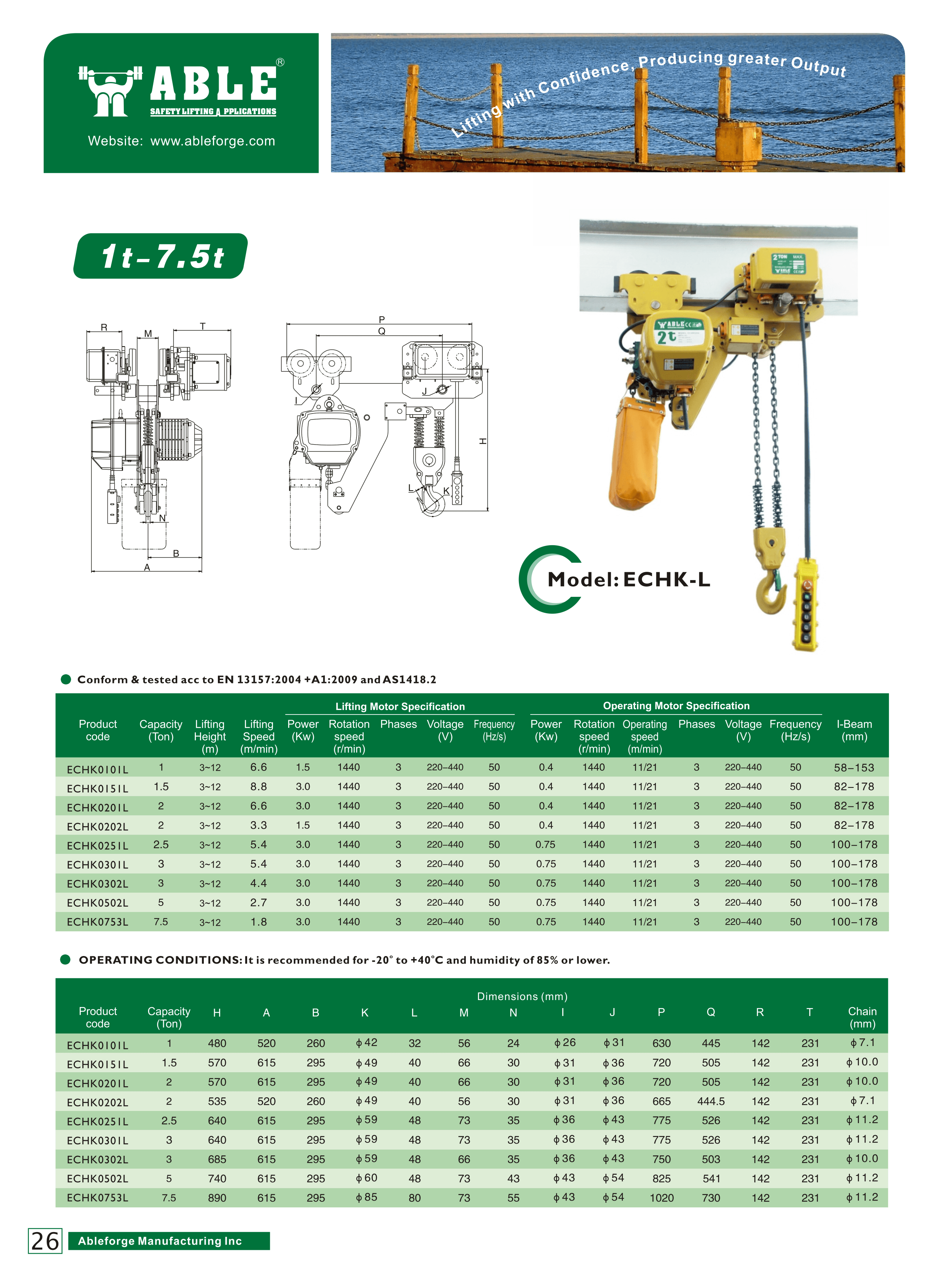

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Three-phase electric chain hoist built for heavy-industry lifting, available in single or dual speed. The premium aluminium-alloy body dissipates heat and withstands repeated lifting cycles, while a friction-clutch overload limiter, upper and lower over-travel limit switches, induction-hardened oil-bath gearing and an instant magnetic brake keep operation safe and quiet. Ultra-hardened Grade 80 load chain (Japan-made) and a German-made control switch. Standard lifting height 3–12 m. An electric-trolley version (ECHKT) is available for travel along the beam. Conforms to and tested per EN 13157:2004+A1:2009 and AS 1418.2.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Electric Chain Hoist
- WLL / Range
- WLL 0.5 - 20 t
- Type
- 3-phase electric chain hoist · single or dual speed
- Body shell
- Premium aluminium alloy — high heat dissipation
- Load chain
- Grade 80, ultra-hardened, Japan-made
- Brake
- Magnetic brake — instant stop on power loss
- Overload protection
- Friction clutch
- Limit switch
- Over-travel protection, upper & lower
- Power supply
- 220–440 V · 3-phase · 50 Hz
- Lifting height
- 3–12 m (standard)
- Control switch
- German-made
- Operating conditions
- −20°C to +40°C · humidity ≤ 85%
- Options
- Remote control · overload limiter · rain cover · thermo switch
- Part Number
- ECHK
- Brand
- ABLE
- Standards / Certifications
- EN 13157:2004+A1:2009AS 1418.2Grade 80 chain
