ShackleType D screw pin shackleAvailable
Green Pin Dee Shackle SC
WLL 0.33 – 55 t
Part No. G-4151· Green Pin

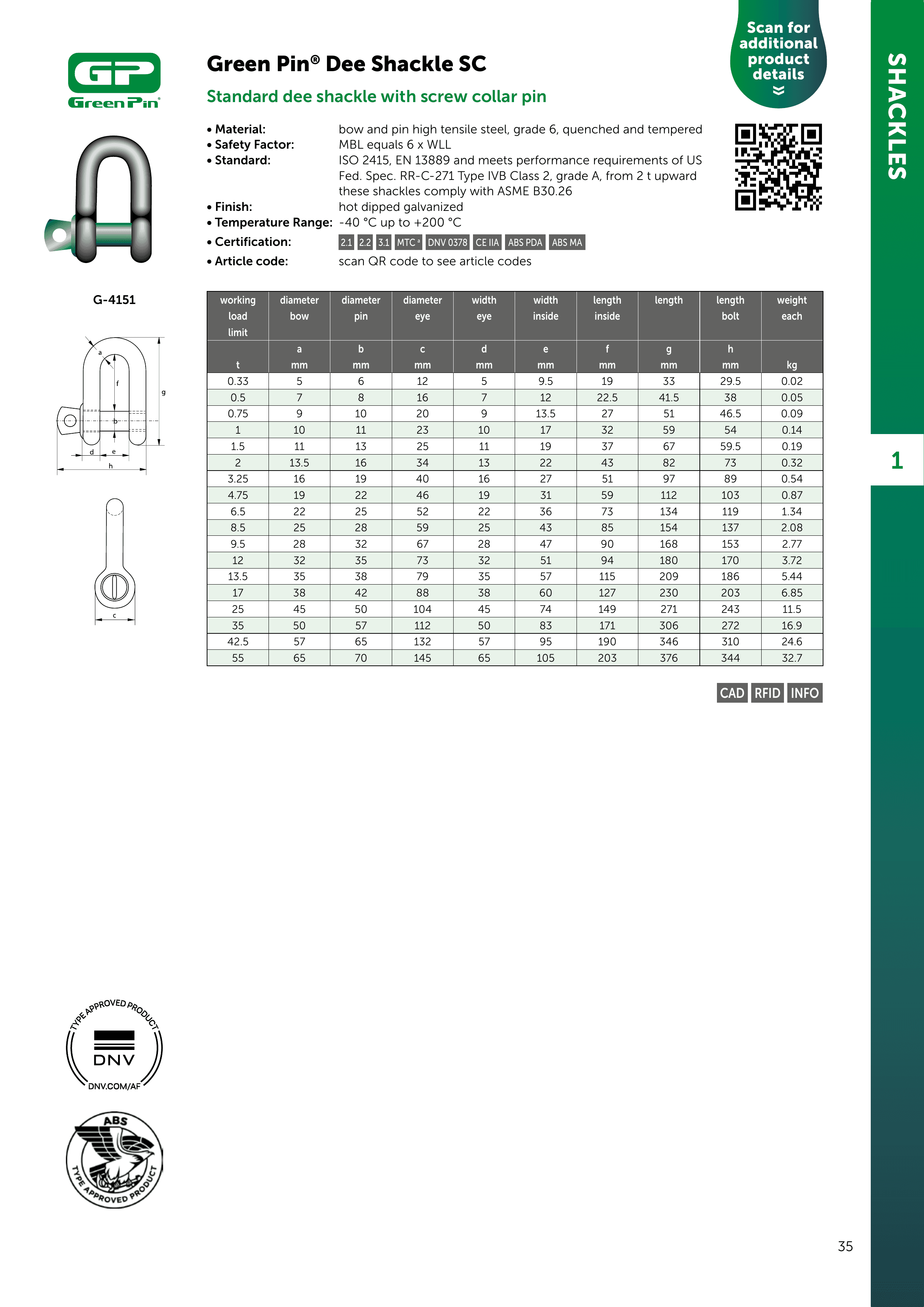

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® standard dee (D) shackle with screw collar pin. Bow and pin forged in high-tensile steel, grade 6, quenched and tempered; minimum breaking load equals 6× the working load limit. Hot-dipped galvanized for offshore corrosion resistance, rated −40°C to +200°C. Manufactured to ISO 2415 and EN 13889, meeting US Fed. Spec. RR-C-271 Type IVB Class 2; from 2 t upward it complies with ASME B30.26.
Specifications
- Category
- Shackle
- Subcategory
- Type D screw pin shackle
- WLL / Range
- WLL 0.33 – 55 t
- Type
- Dee (D) shackle · screw collar pin
- Material
- Bow & pin — high-tensile steel, grade 6, quenched & tempered
- Safety factor
- MBL = 6 × WLL
- Finish
- Hot-dipped galvanized
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · DNV 0378 · ABS PDA / MA · CE IIA
- Part Number
- G-4151
- Brand
- Green Pin
- Standards / Certifications
- ISO 2415EN 13889ASME B30.26DNVABSCE
