ShackleType D safety shackleAvailable
Green Pin Dee Shackle BN
WLL 9.5 – 85 t
Part No. G-4153· Green Pin

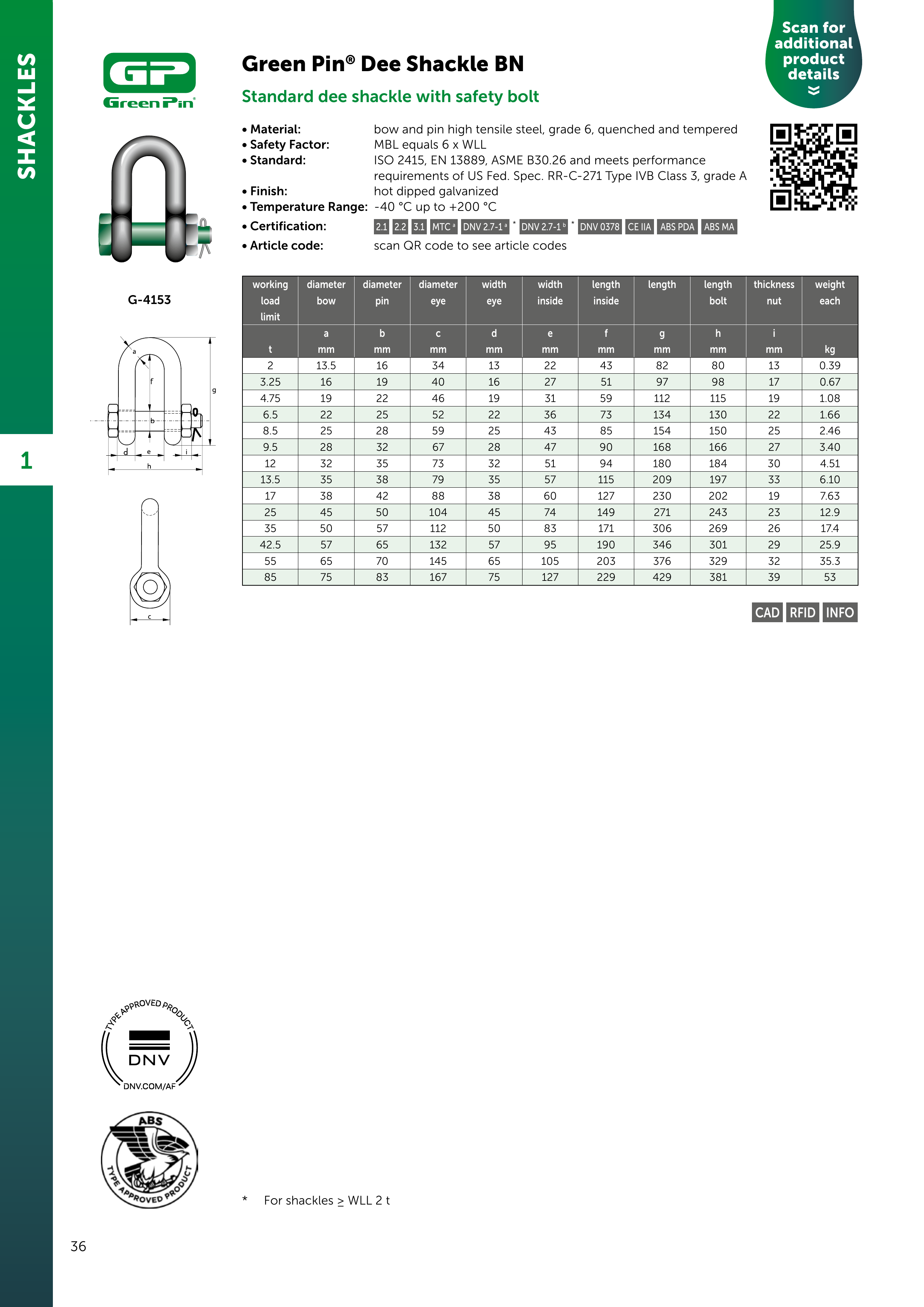

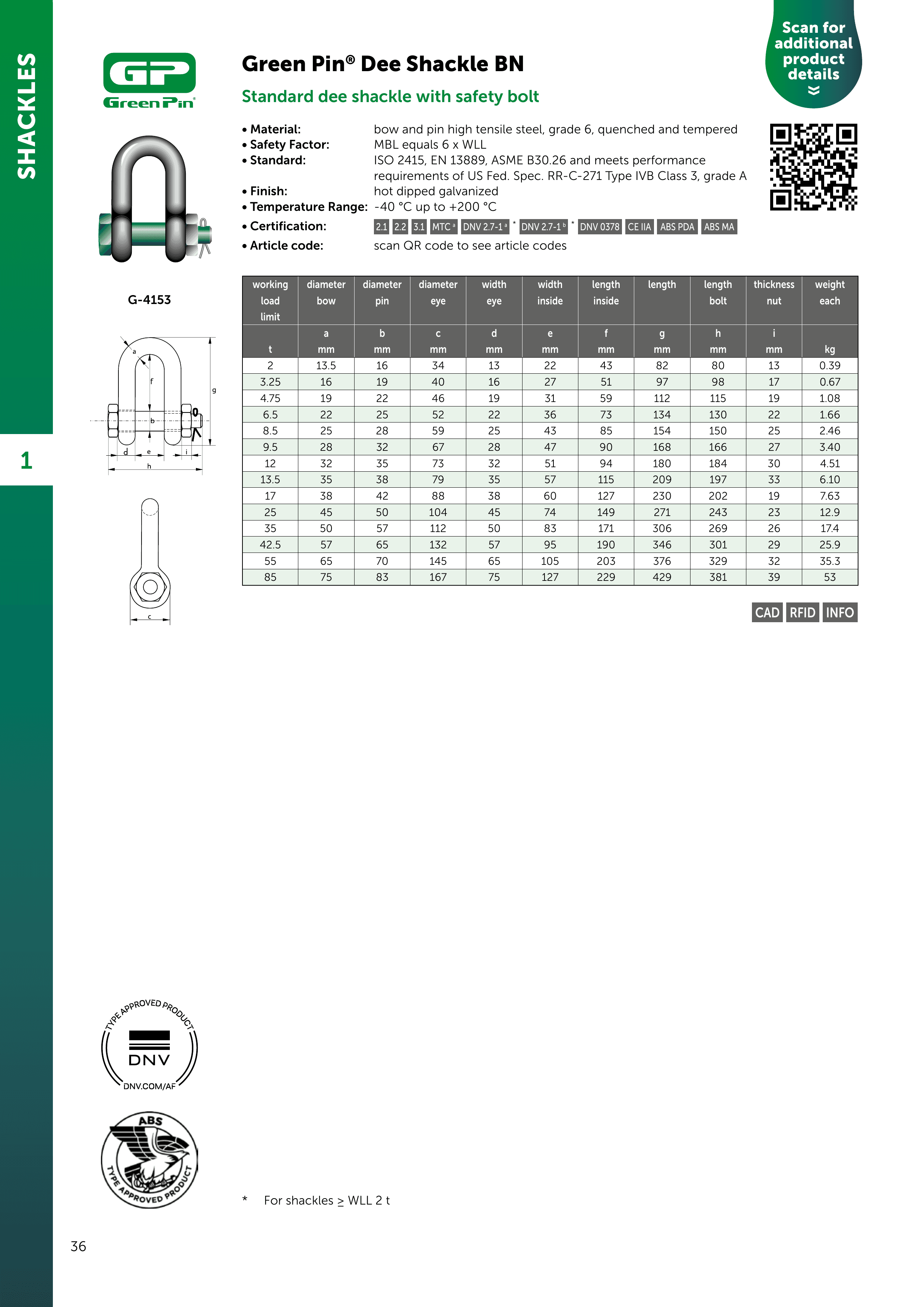

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® dee (D) shackle with safety bolt, nut and split cotter pin — for permanent or long-term installations where the pin must not rotate. Bow and pin forged in high-tensile steel, grade 6, quenched and tempered, with a minimum breaking load of 6× the working load limit. Hot-dipped galvanized, rated −40°C to +200°C. Made to ISO 2415, EN 13889 and ASME B30.26, meeting US Fed. Spec. RR-C-271 Type IVB Class 3; DNV 2.7-1 offshore certification available from 2 t.
Specifications
- Category
- Shackle
- Subcategory
- Type D safety shackle
- WLL / Range
- WLL 9.5 – 85 t
- Type
- Dee (D) shackle · safety bolt, nut & cotter pin
- Material
- Bow & pin — high-tensile steel, grade 6, quenched & tempered
- Safety factor
- MBL = 6 × WLL
- Finish
- Hot-dipped galvanized
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · DNV 2.7-1 · DNV 0378 · ABS PDA / MA · CE IIA
- Part Number
- G-4153
- Brand
- Green Pin
- Standards / Certifications
- ISO 2415EN 13889ASME B30.26DNV 2.7-1ABSCE
