ShackleSafety Bow Anchor shackleAvailable
Green Pin Bow Shackle BN
WLL 0.5 - 85 t
Part No. G-4163· Green Pin

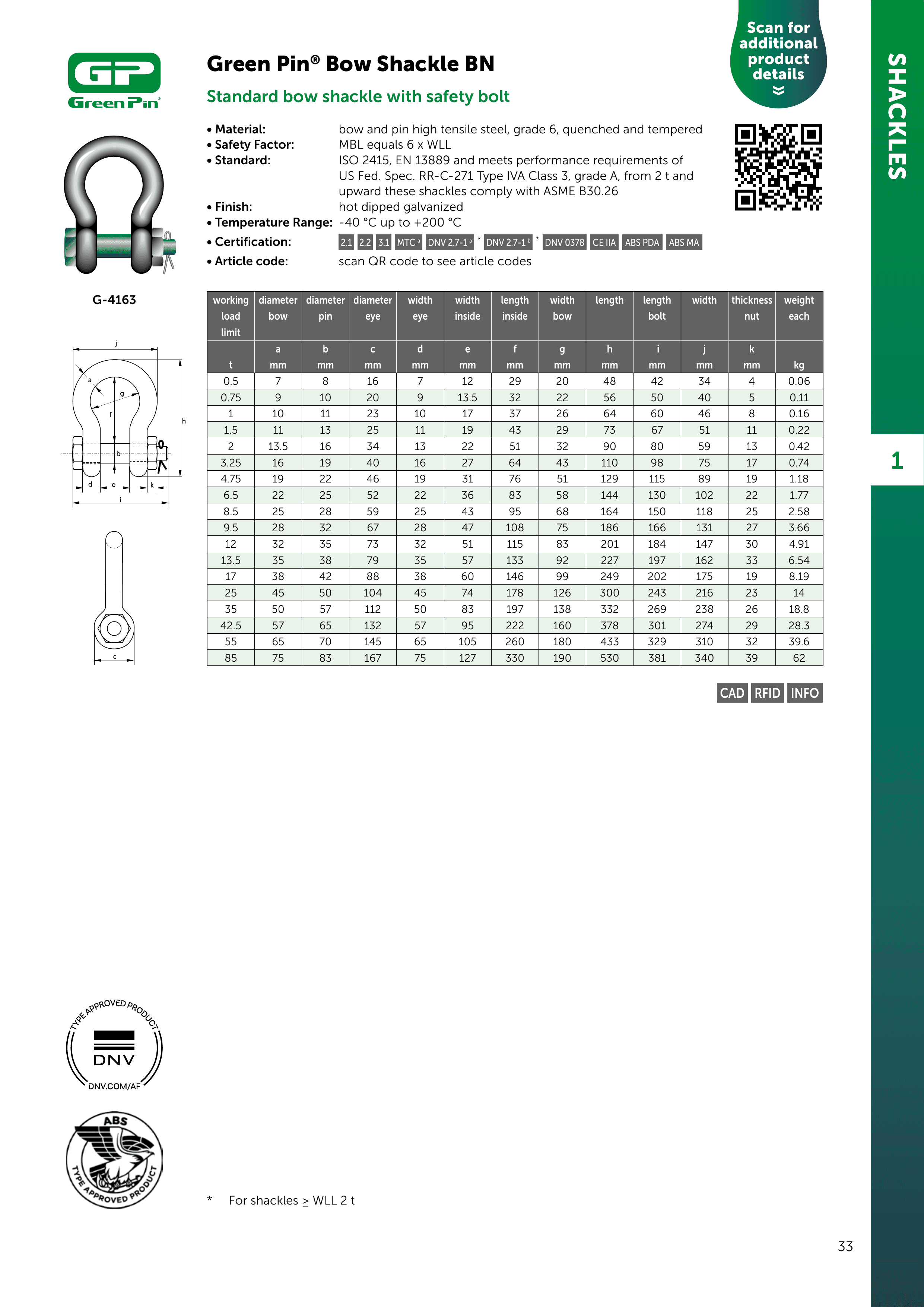

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® bow (anchor) shackle with safety bolt, nut and split cotter pin — for permanent or long-term connections where the pin must not turn. Bow and pin forged in high-tensile steel, grade 6, quenched and tempered, minimum breaking load 6× WLL. Hot-dipped galvanized, rated −40°C to +200°C. Made to ISO 2415 and EN 13889, meeting US Fed. Spec. RR-C-271 Type IVA Class 3; from 2 t upward it complies with ASME B30.26. DNV 2.7-1 offshore certification available. WLL 0.5–85 t.
Specifications
- Category
- Shackle
- Subcategory
- Safety Bow Anchor shackle
- WLL / Range
- WLL 0.5 - 85 t
- Type
- Bow shackle · safety bolt, nut & cotter pin
- Material
- Bow & pin — high-tensile steel, grade 6, quenched & tempered
- Safety factor
- MBL = 6 × WLL
- Finish
- Hot-dipped galvanized
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · DNV 2.7-1 · DNV 0378 · ABS PDA / MA · CE IIA
- Part Number
- G-4163
- Brand
- Green Pin
- Standards / Certifications
- ISO 2415EN 13889ASME B30.26DNV 2.7-1ABSCE
