Green Pin Bow Shackle FN
Catalogue detail

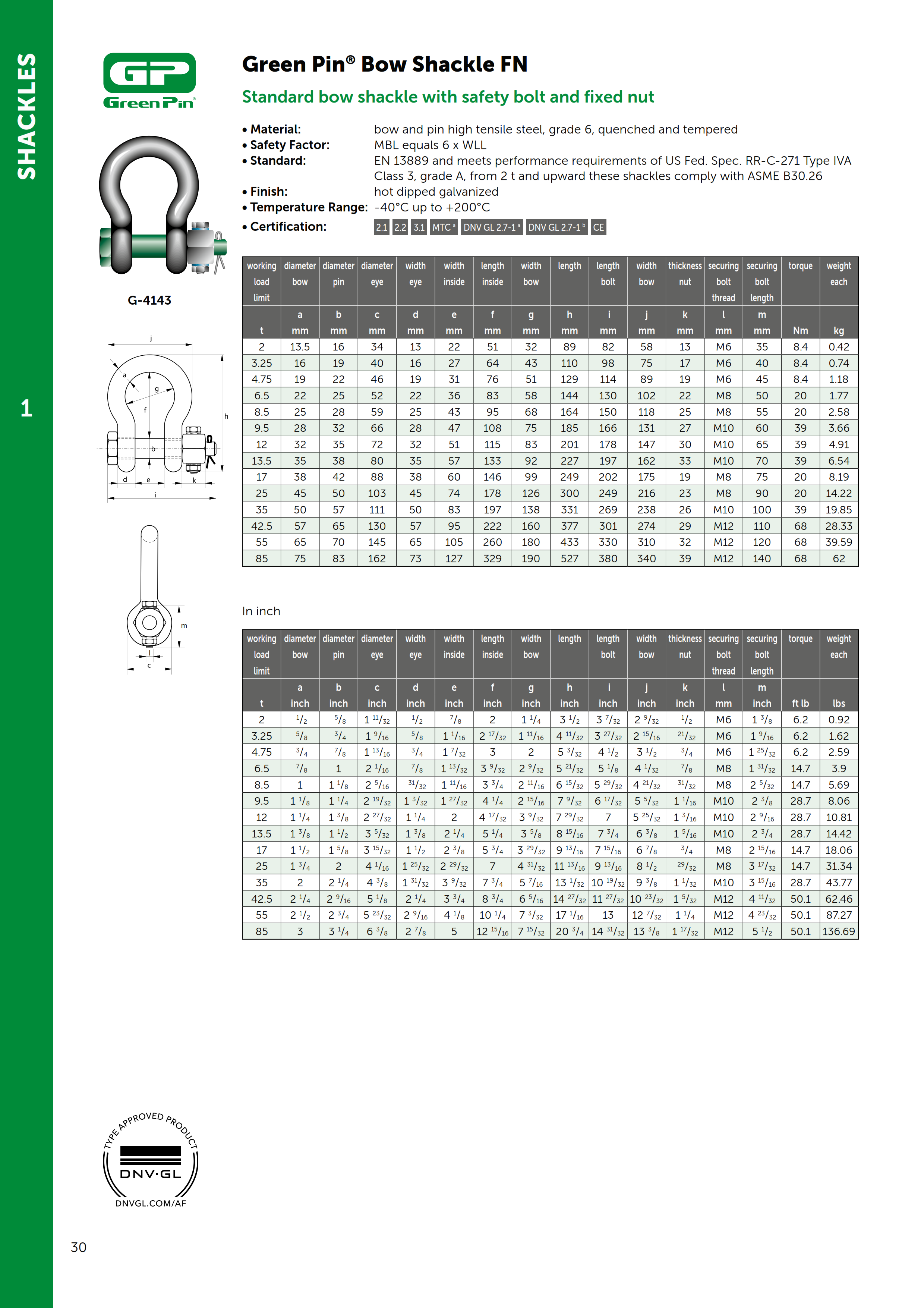

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
The Green Pin® Bow Shackle FN is a standard bow shackle with a safety bolt and fixed nut, featuring a bow and pin made of grade 6 high-tensile steel that is quenched and tempered. It has a safety factor where MBL equals 6 x WLL and complies with the EN 13889 standard while meeting the performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade A, with shackles from 2 t and upward, also complying with ASME B30.26. Additionally, the product features a hot-dip galvanized finish, operates within a temperature range of -40°C up to +200°C, and carries certifications including 2.1, 2.2, 3.1, MTC, DNV GL 2.7-1, and CE.
Specifications
- Category
- Shackle
- Subcategory
- Bow Shackle with Safety Bolt and Fixed Nut
- WLL / Range
- WLL 2 - 85 t
- Type
- Bow shackle · safety bolt and fixed nut
- Material
- Bow & pin - high tensile steel, grade 6, quenched and tempered
- Safety factor
- MBL = 6 x WLL
- Finish
- Hot dipped galvanized
- Temperature Range
- -40°C up to +200°C
- Certification
- 2.1 / 2.2 / 3.1 / MTC / DNV / GL 2.7-1 / DNV GL 2.7-1 / CE
- Part Number
- G-4143
- Brand
- Green Pin
- Standards / Certifications
- EN 13889US Fed. Spec. RR-C-271 Type IVA Class 3, grade AASME B30.26MTCDNV GL 2.7-1CE
