Master LinkHeavy Duty MasterlinkAvailable

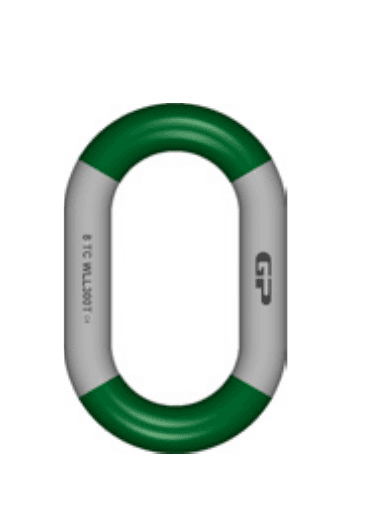

Green Pin Heavy Duty Master Link
WLL 131 - 400 t
Part No. P-6815· Green Pin

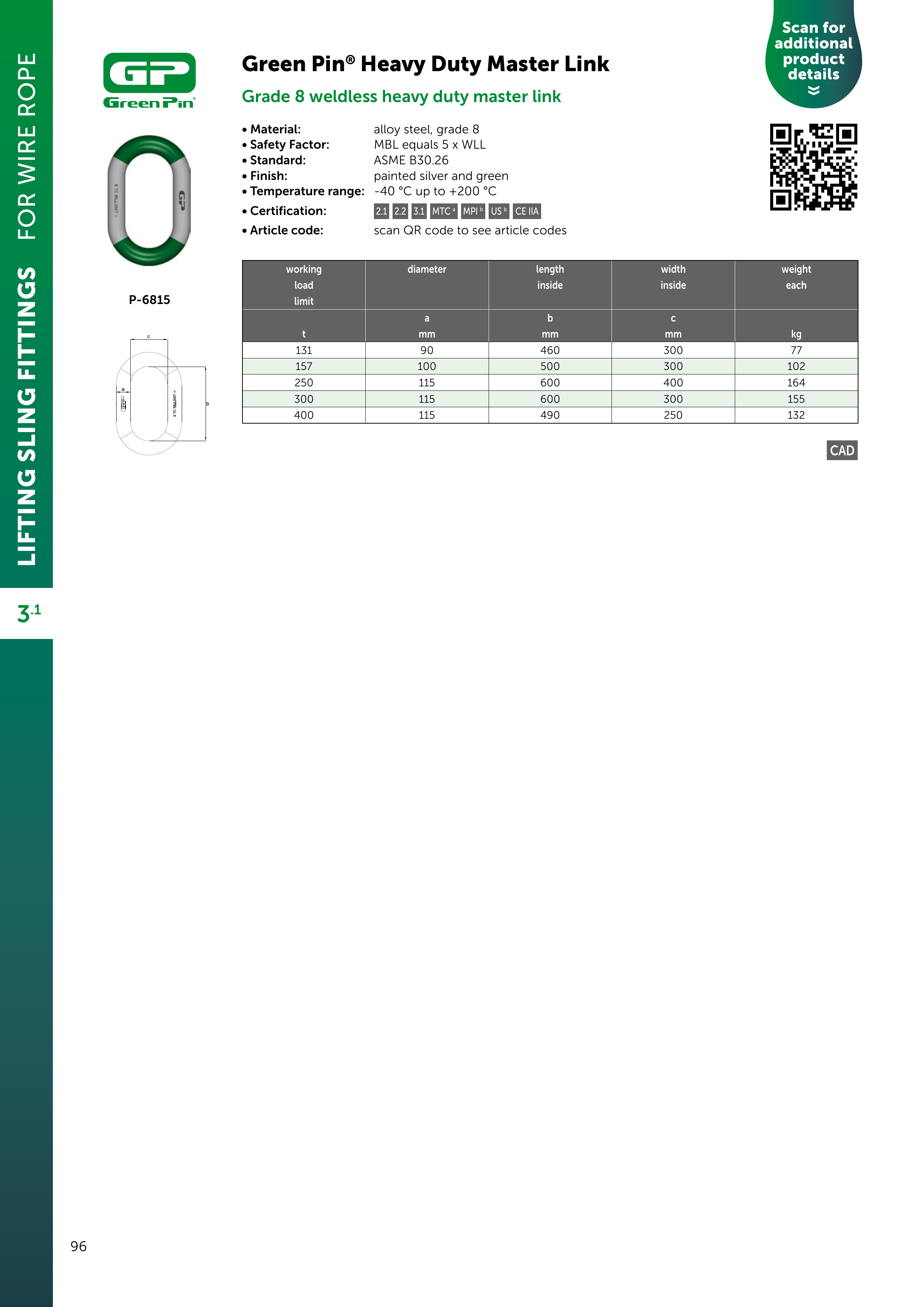

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® Heavy Duty Master Link — a weldless, single-piece forged grade 8 master link for heavy-duty and offshore lifting. A consistent Charpy V-notch value of at least 42 J at −20°C and 27 J at −40°C throughout the whole link meets offshore certification requirements. Minimum breaking load 5× WLL, painted silver and green, rated −40°C to +200°C. Made to ASME B30.26. WLL 131–400 t.
Specifications
- Category
- Master Link
- Subcategory
- Heavy Duty Masterlink
- WLL / Range
- WLL 131 - 400 t
- Type
- Heavy-duty master link — weldless, single-piece forged
- Material
- Alloy steel, grade 8
- Safety factor
- MBL = 5 × WLL
- Standard
- ASME B30.26
- Finish
- Painted silver & green
- Impact (Charpy V)
- ≥ 42 J at −20°C · ≥ 27 J at −40°C
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · MPI · US · CE IIA
- Part Number
- P-6815
- Brand
- Green Pin
- Standards / Certifications
- ASME B30.26Grade 8WeldlessCE IIA
