Master LinkMaster link AssemblyAvailable
Green Pin Master Link Assembly EN 1677-4 GR8
WLL 2.5 - 100 t
Part No. GP-WR-002· Green Pin

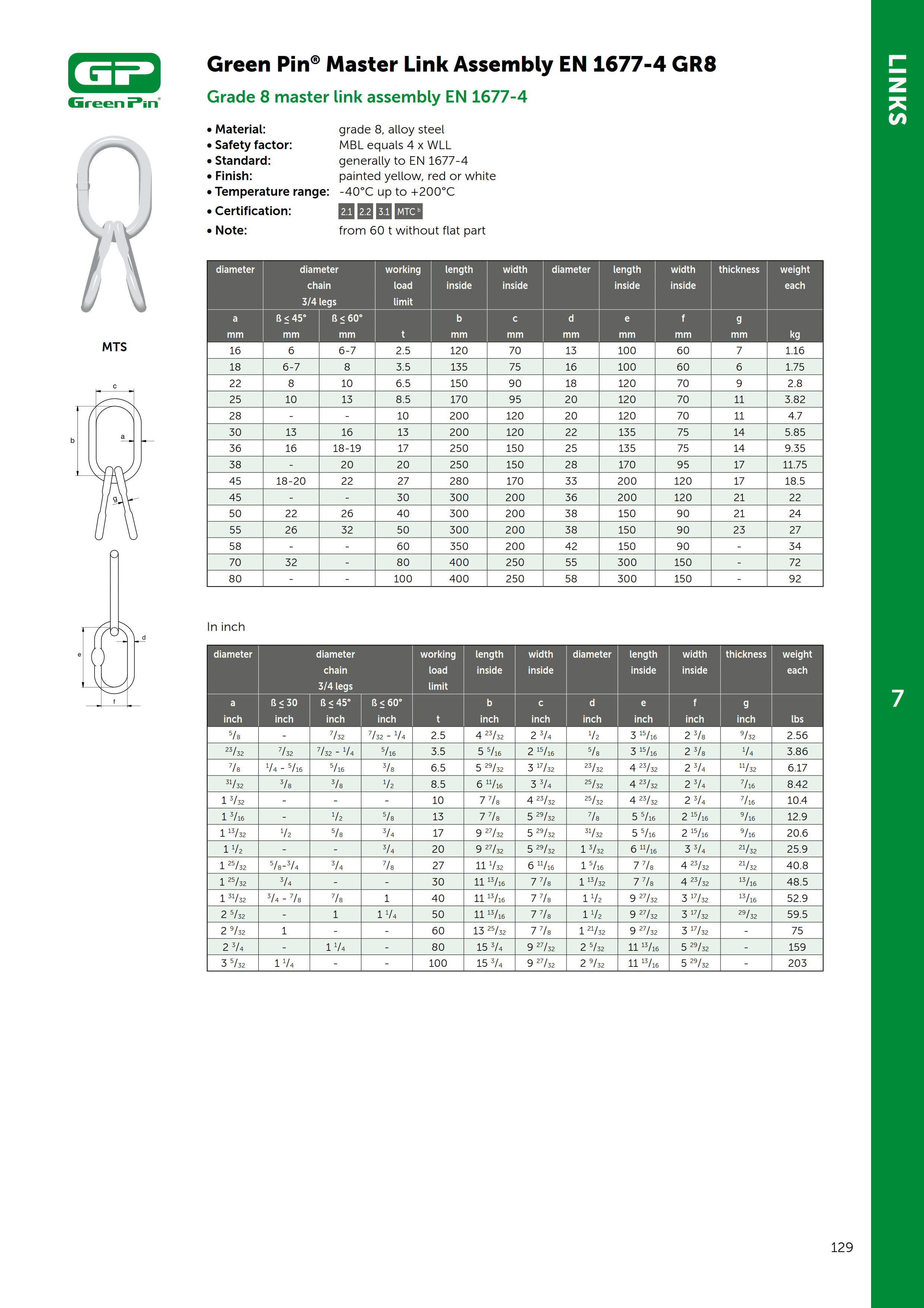

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® master link assembly, grade 8 — a welded master link with two sub-links for connecting 3- and 4-leg wire-rope or chain slings to the crane hook. DNV 2.7-1 certified for offshore lifting, with a minimum breaking load of 5× WLL. Forged in grade 8 alloy steel, painted silver, rated −40°C to +200°C (−20°C at 75 t and 100 t). Made to DNV 2.7-1, EN 12079-2 and EN 1677-4. WLL 2.5–100 t.
Specifications
- Category
- Master Link
- Subcategory
- Master link Assembly
- WLL / Range
- WLL 2.5 - 100 t
- Type
- Master link assembly — 3- & 4-leg slings
- Material
- Alloy steel, grade 8
- Safety factor
- MBL = 5 × WLL
- Standard
- DNV 2.7-1 · EN 12079-2 · EN 1677-4
- Finish
- Painted silver
- Temperature range
- −40°C to +200°C (−20°C at 75–100 t)
- Offshore
- DNV 2.7-1 type-approved
- Certification
- 2.1 / 2.2 / 3.1 MTC · MPI · DNV 2.7-1 · CE IIB
- Part Number
- GP-WR-002
- Brand
- Green Pin
- Standards / Certifications
- DNV 2.7-1EN 12079-2EN 1677-4Grade 8CE IIB
