Hoist & TrolleySnatch BlockAvailable
Hand Pulley Block
WLL 0.5 - 6.4 t
Part No. HPB· ABLE

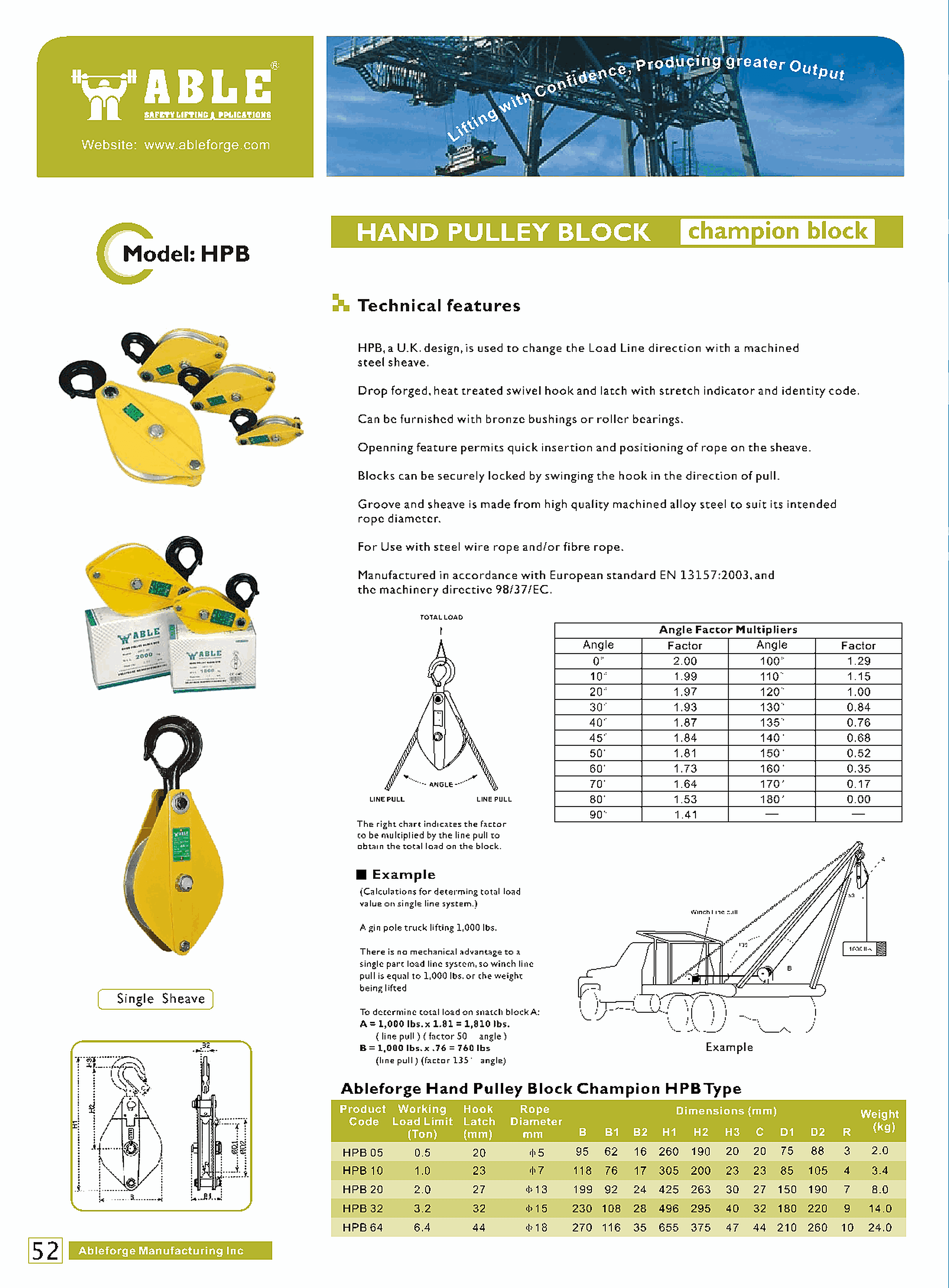

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description

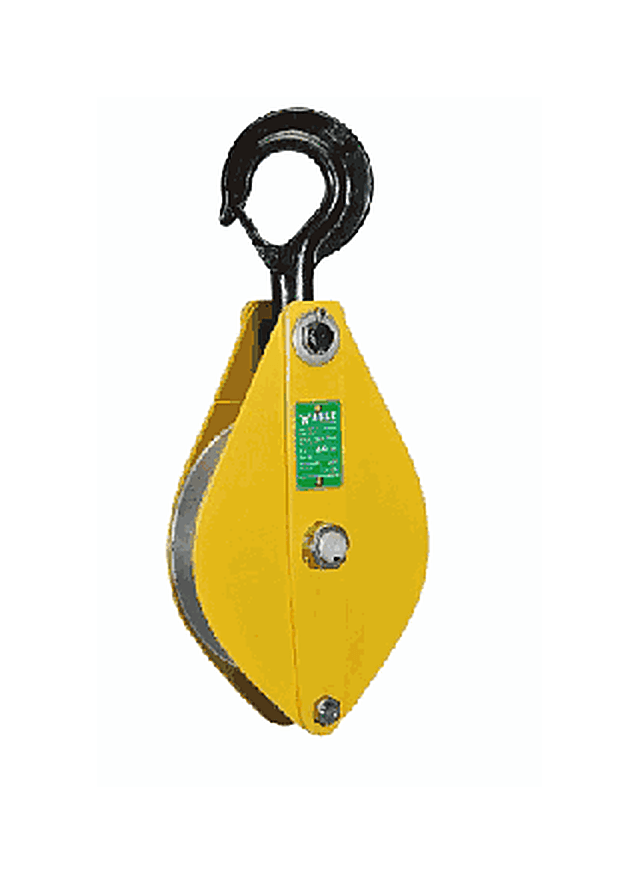

ABLE HPB champion snatch block (hand pulley block) — a UK-design single-sheave block used to change the direction of a load line with a machined steel sheave. The drop-forged, heat-treated swivel hook and latch carry a stretch indicator and identity code; an opening feature lets the rope be inserted and positioned quickly, and the block locks securely by swinging the hook toward the direction of pull. Supplied with bronze bushings or roller bearings, for steel wire rope and/or fibre rope. Made to EN 13157:2003 and machinery directive 98/37/EC. WLL 0.5–6.4 t.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Snatch Block
- WLL / Range
- WLL 0.5 - 6.4 t
- Type
- Single-sheave snatch block (hand pulley)
- Sheave
- Machined alloy steel, matched to rope Ø
- Bearing
- Bronze bushings or roller bearings
- Hook
- Drop-forged swivel hook + latch, stretch indicator
- Rope
- Steel wire rope and/or fibre rope
- Standard
- EN 13157:2003 · 98/37/EC
- WLL range
- 0.5 – 6.4 t
- Part Number
- HPB
- Brand
- ABLE
- Standards / Certifications
- EN 1315798/37/ECDrop-forged hook
