ClampsHorizontal Plate ClampAvailable

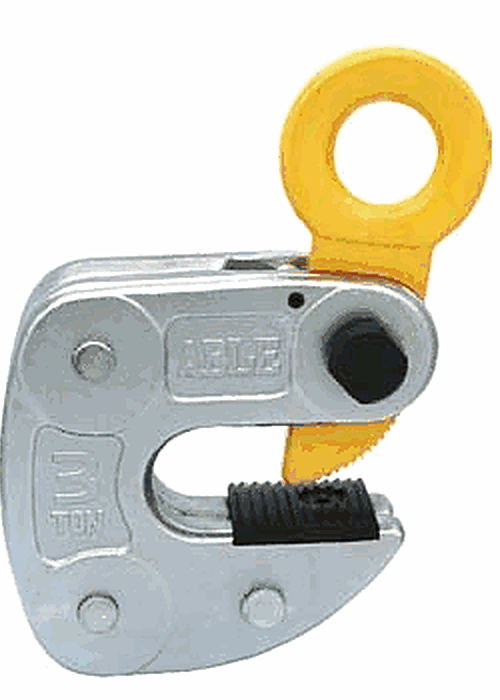

Horizontal Lifting / Plate Clamp
WLL 0.75 - 3 t
Part No. HLC / HPC· ABLE

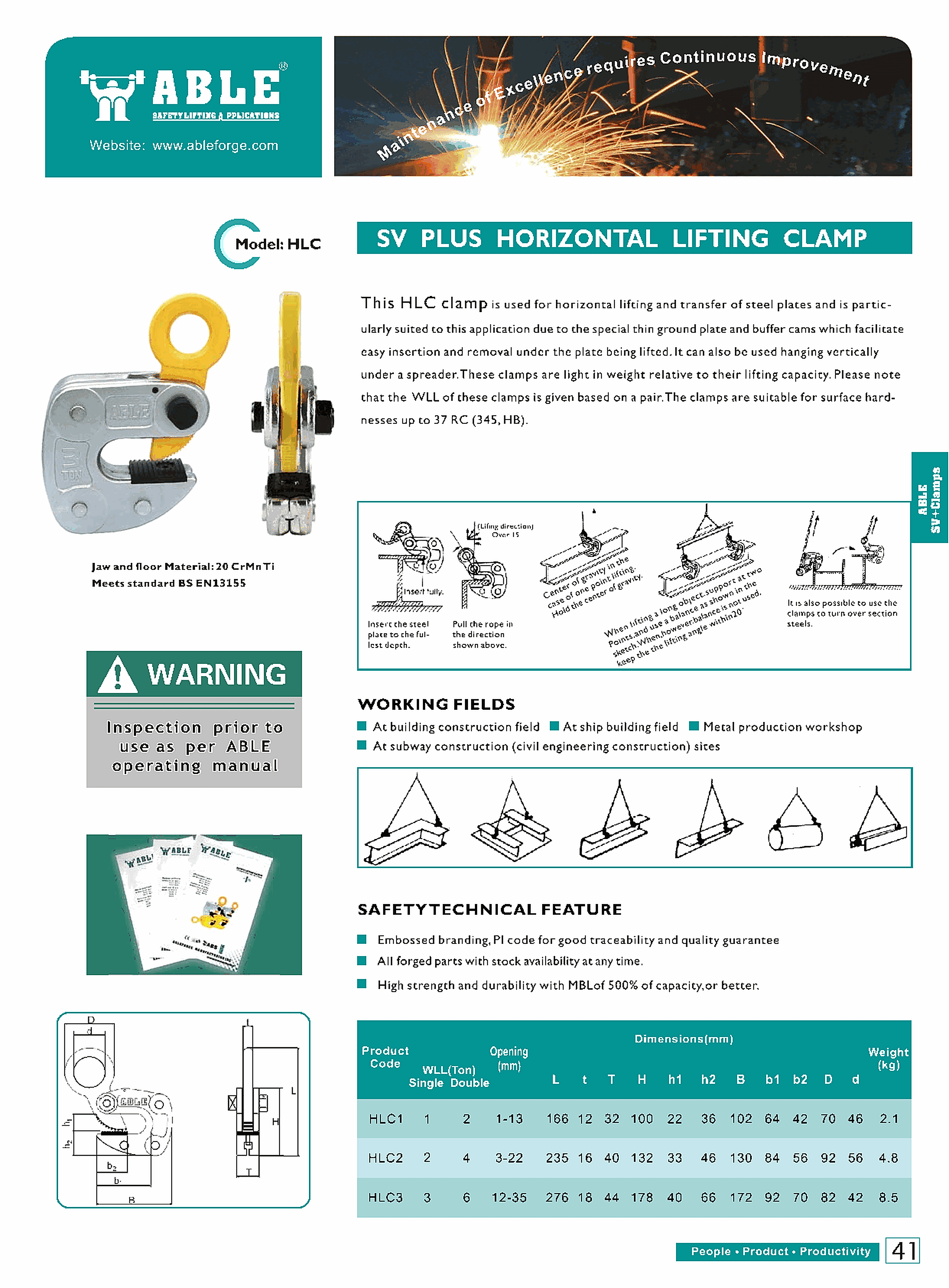

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE SV Plus horizontal lifting clamp (HLC) for horizontal lifting and transfer of steel plates. A thin ground plate and buffer cams ease insertion and removal under the plate; the clamps can also hang vertically under a spreader. Forged jaw and cam in 20CrMnTi, minimum breaking load 500% of capacity, suitable for surface hardness up to 37 RC (345 HB). Meets BS EN 13155. WLL is rated per pair (0.75–3 t single).
Specifications
- Category
- Clamps
- Subcategory
- Horizontal Plate Clamp
- WLL / Range
- WLL 0.75 - 3 t
- Type
- Horizontal plate lifting clamp (used in pairs)
- Standard
- BS EN 13155
- Jaw / cam material
- 20CrMnTi — forged
- Breaking load
- MBL ≥ 500% of capacity
- Surface hardness
- Up to 37 RC (345 HB)
- Rating
- WLL given per pair
- Part Number
- HLC / HPC
- Brand
- ABLE
- Standards / Certifications
- BS EN 13155MBL 5× capacity
