Lifting Eye / Eye Bolt GR8
WLL 0.07 - 36 t
Part No. GP-EYE-001 / DIN 580· Green Pin

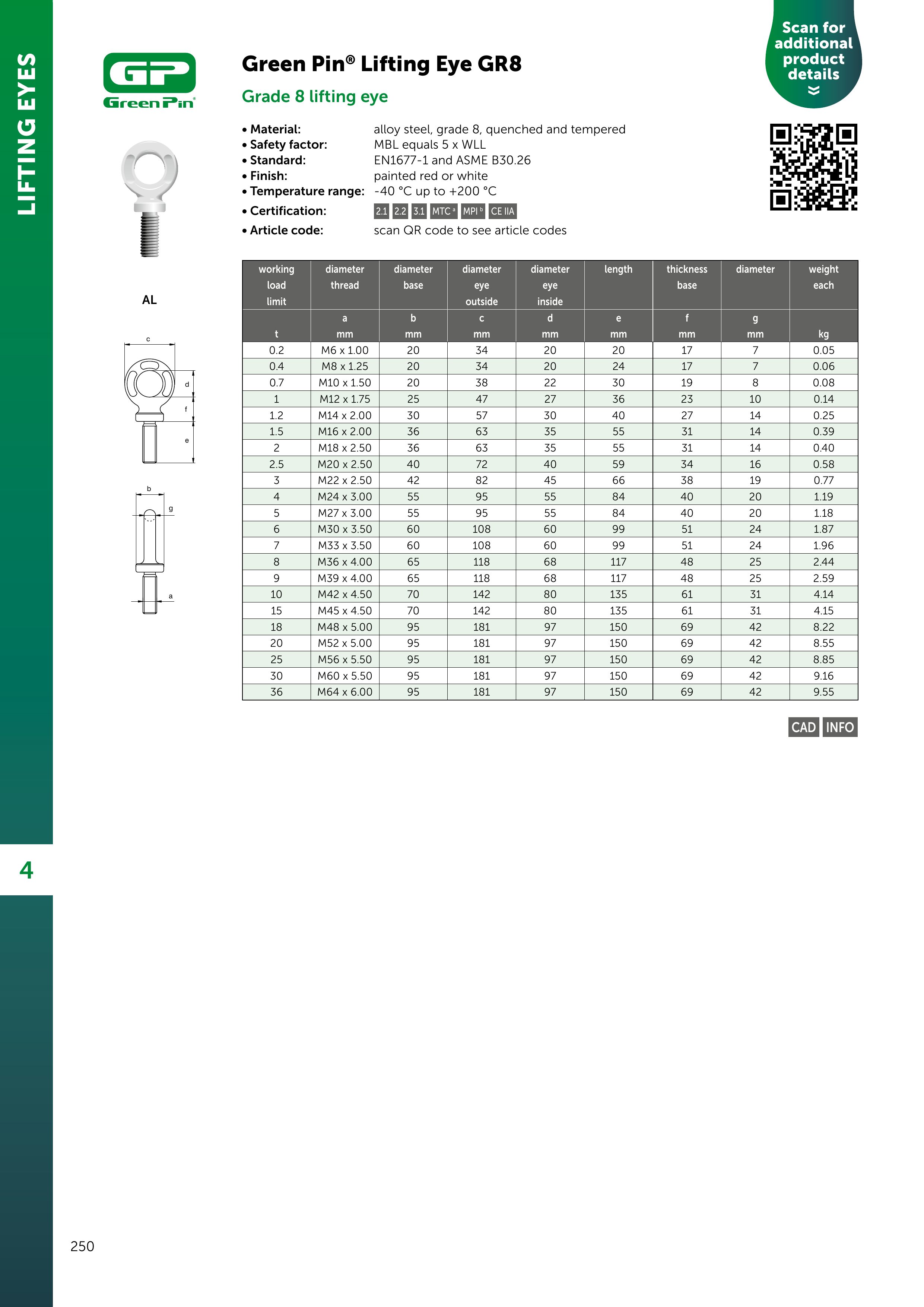

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® lifting eye / eye bolt, grade 8 — a forged eyebolt anchor point for lifting, with metric thread from M6 to M64. Forged in grade 8 alloy steel, quenched and tempered, minimum breaking load 5× WLL. Painted red or white, rated −40°C to +200°C. Made to EN 1677-1 and ASME B30.26 (DIN 580 form). WLL 0.2–36 t.
Specifications
- Category
- Fittings
- Subcategory
- Eyebolt
- WLL / Range
- WLL 0.07 - 36 t
- Type
- Lifting eye / eye bolt (metric thread M6–M64)
- Material
- Alloy steel, grade 8, quenched & tempered
- Safety factor
- MBL = 5 × WLL
- Standard
- EN 1677-1 · ASME B30.26 · DIN 580
- Finish
- Painted red or white
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · MPI · CE IIA
- Part Number
- GP-EYE-001 / DIN 580
- Brand
- Green Pin
- Standards / Certifications
- EN 1677-1ASME B30.26DIN 580Grade 8CE IIA
