Hoist & TrolleyTrolley (Plain, Gear)Available

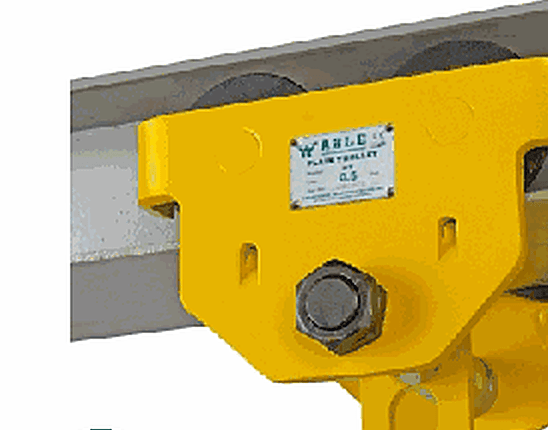

Plain / Geared Trolley
WLL 0.5 - 30 t
Part No. PT / GT· ABLE
Catalogue detail

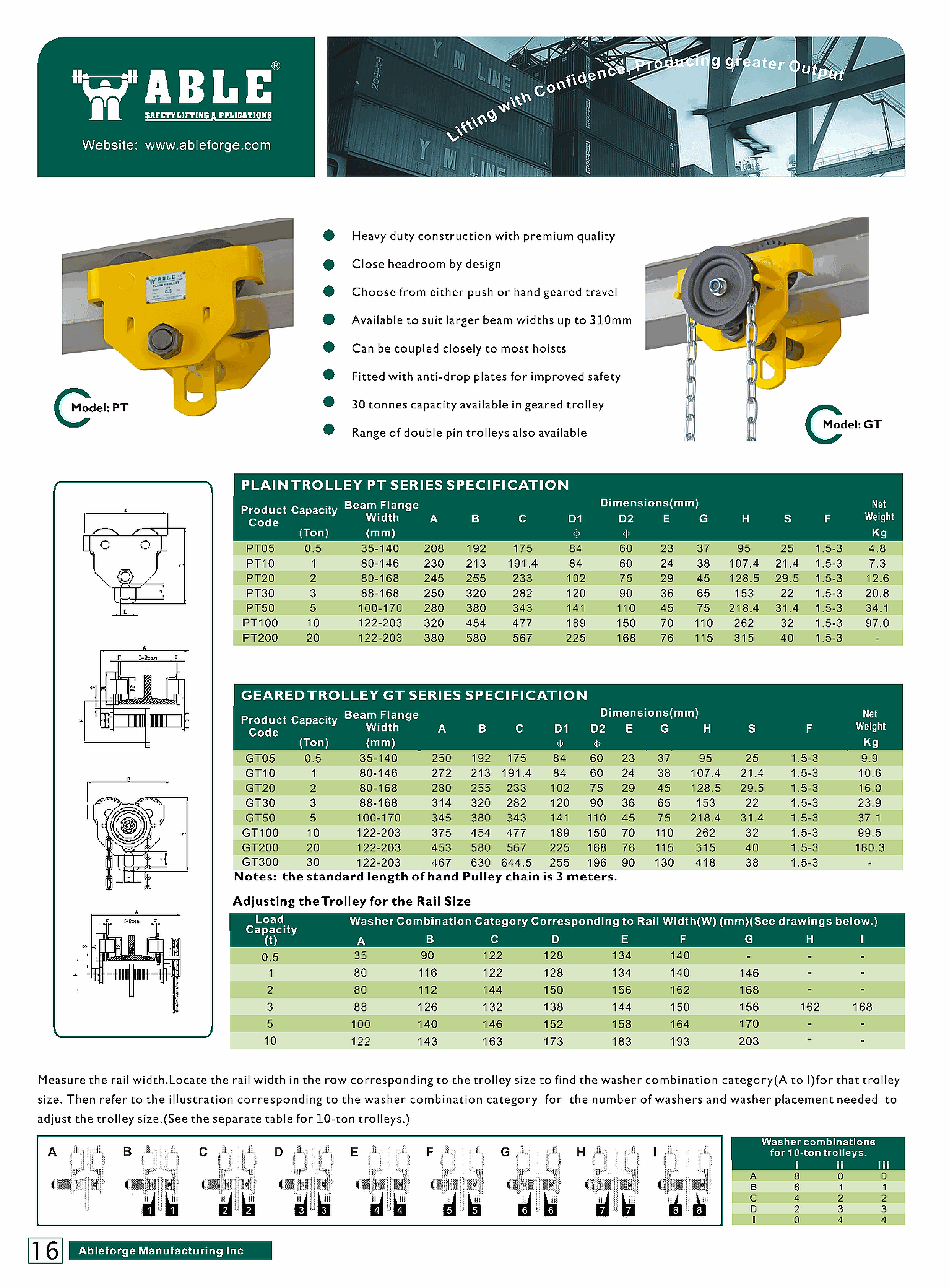

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE PT/GT trolley — a heavy-duty beam trolley to carry a chain hoist along an I-beam, available as a plain push trolley (PT) or a hand-geared trolley (GT). A close-headroom design couples closely to most hoists, adjusts to beam flange widths up to 310 mm, and is fitted with anti-drop plates for safety. Geared trolleys reach 30 t capacity; double-pin versions are also available. WLL 0.5–30 t.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Trolley (Plain, Gear)
- WLL / Range
- WLL 0.5 - 30 t
- Type
- Beam trolley — plain (PT) or geared (GT)
- Travel
- Push (PT) or hand-geared chain (GT)
- Beam flange width
- Up to 310 mm (adjustable)
- Safety
- Anti-drop plates
- Coupling
- Fits most chain hoists, close headroom
- WLL range
- 0.5 – 30 t
- Part Number
- PT / GT
- Brand
- ABLE
- Standards / Certifications
- Anti-drop platesAdjustable 35–310 mm
