ClampsPlate Lifting ClampAvailable

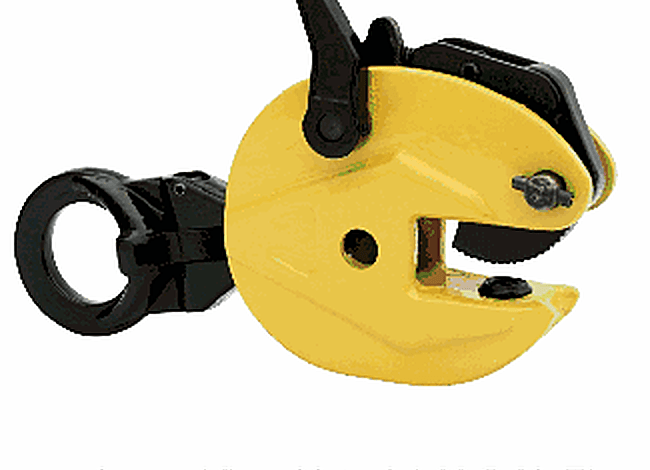

Plate Lifting Clamp (Flexible)
WLL 0.5 - 8 t
Part No. PLC· ABLE

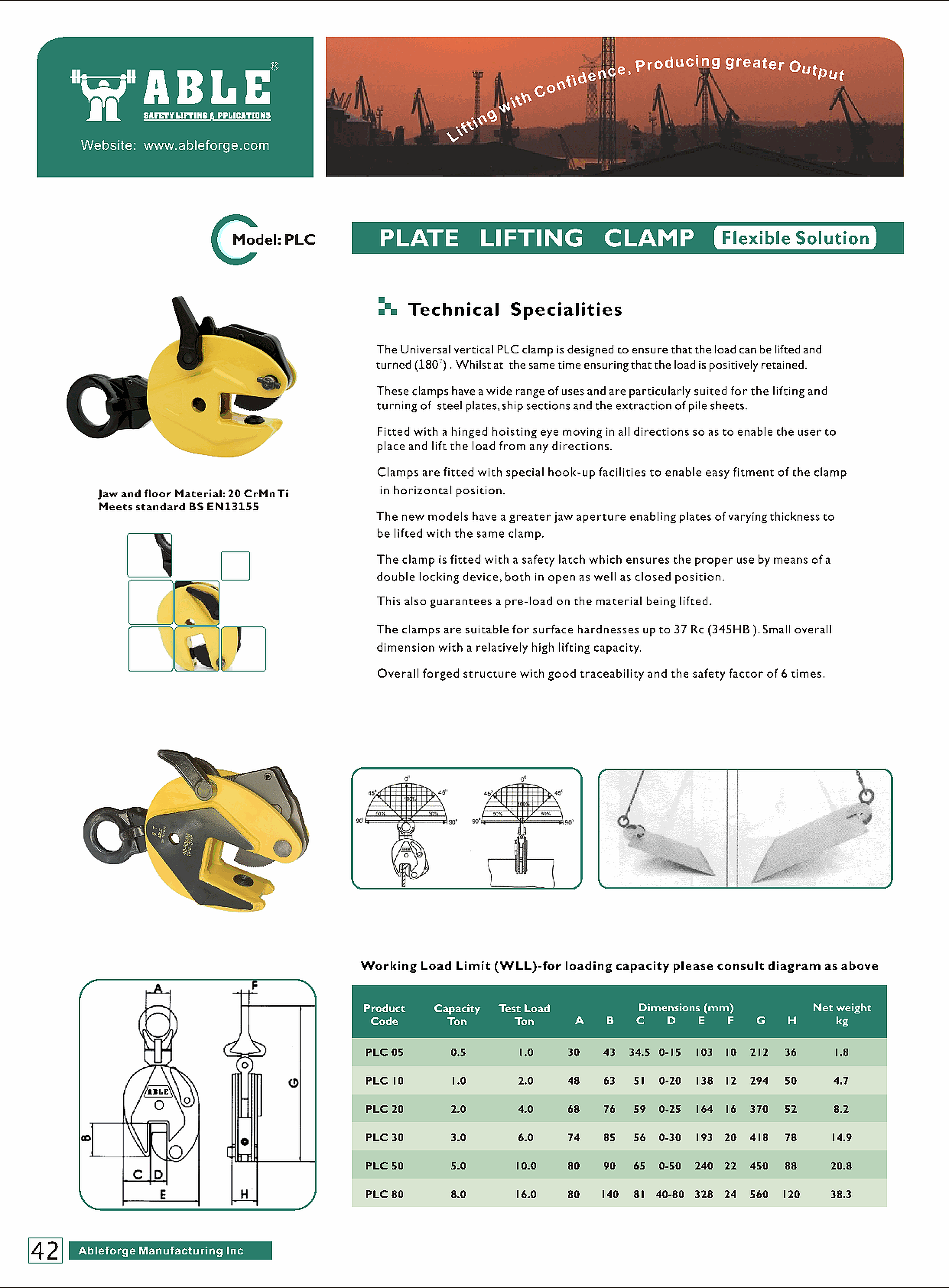

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE PLC universal plate lifting clamp — a flexible-solution clamp that lifts and turns loads through 180° while positively retaining them. A hinged hoisting eye swivels in all directions so the load can be picked from any angle, and a wide jaw aperture handles plates of varying thickness. A double-locking safety latch secures the clamp in both open and closed positions and pre-loads the material. Fully forged, safety factor 6×, suitable for surface hardness up to 37 RC (345 HB). WLL 0.5–8 t.
Specifications
- Category
- Clamps
- Subcategory
- Plate Lifting Clamp
- WLL / Range
- WLL 0.5 - 8 t
- Type
- Universal plate lifting clamp (lift & 180° turn)
- Hoisting eye
- Hinged — swivels in all directions
- Locking
- Double-locking safety latch (open & closed)
- Construction
- Fully forged
- Safety factor
- 6 × WLL
- Surface hardness
- Up to 37 RC (345 HB)
- WLL range
- 0.5 – 8 t
- Part Number
- PLC
- Brand
- ABLE
- Standards / Certifications
- BS EN 13155Safety factor 6:1
