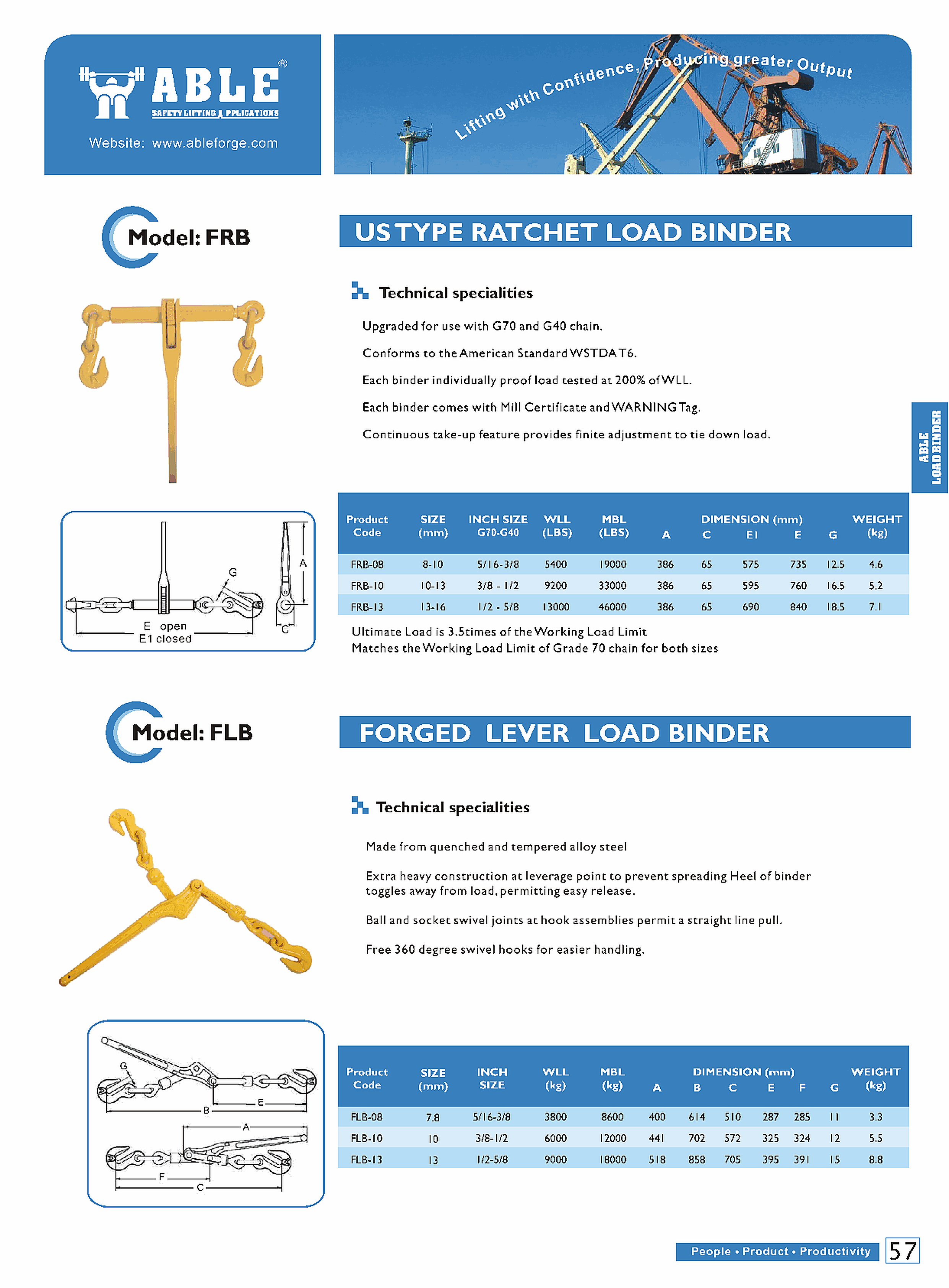

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Load binders (chain tensioners) for securing cargo on trucks, trailers and flatbeds, in ratchet and lever styles. The US-type Ratchet Load Binder (Model FRB) is upgraded for Grade 70 and Grade 40 chain, with a continuous take-up screw giving fine tie-down adjustment and matching the WLL of Grade 70 chain — WLL 5,400–13,000 lb (MBL 19,000–46,000 lb) for 8–16 mm chain, individually proof-tested to 200% of WLL with a mill certificate and warning tag (ultimate load 3.5× WLL), to American standard WSTDA T6. The Forged Lever Load Binder (Model FLB) is quenched-and-tempered alloy steel with extra-heavy construction at the leverage point for easy release, ball-and-socket swivel joints for a straight-line pull and free 360° swivel hooks — WLL 3,800–9,000 kg (MBL 8,600–18,000 kg) for 7.8–13 mm chain.
Specifications
- Category
- Lashing Equipment
- Subcategory
- Load Binder
- WLL / Range
- FRB 5,400–13,000 lb · FLB 3.8–9 t
- Types
- Ratchet (FRB) · forged lever (FLB) load binder
- FRB chain
- Grade 70 / 40 · 8–16 mm (5/16–5/8")
- FRB WLL
- 5,400 – 13,000 lb
- FRB breaking load (MBL)
- 19,000 – 46,000 lb (3.5× WLL)
- FRB standard
- American WSTDA T6 · proof 200% WLL
- FLB material
- Alloy steel, quenched & tempered
- FLB chain
- 7.8 / 10 / 13 mm (5/16–5/8")
- FLB WLL
- 3,800 – 9,000 kg
- FLB breaking load (MBL)
- 8,600 – 18,000 kg
- FLB feature
- Free 360° swivel hooks · ball-and-socket joints
- Certification
- Mill certificate · warning tag
- Part Number
- FRB / FLB
- Brand
- ABLE
- Standards / Certifications
- WSTDA T6Grade 70 / 40Proof 200% WLL
