Spelter / Wedge / Swage Socket
by rope size
Part No. G-6411 … G-6429· Green Pin

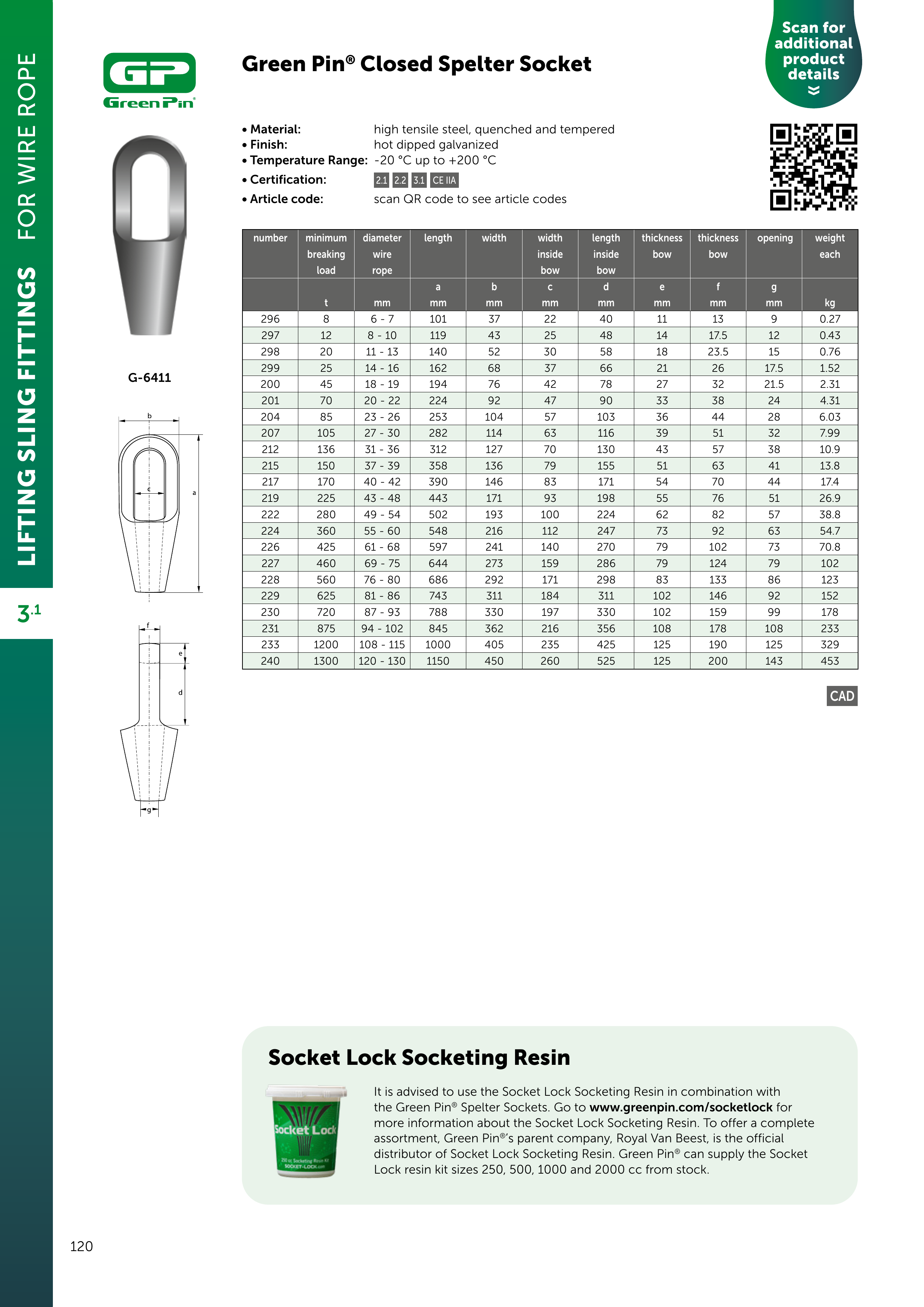

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description

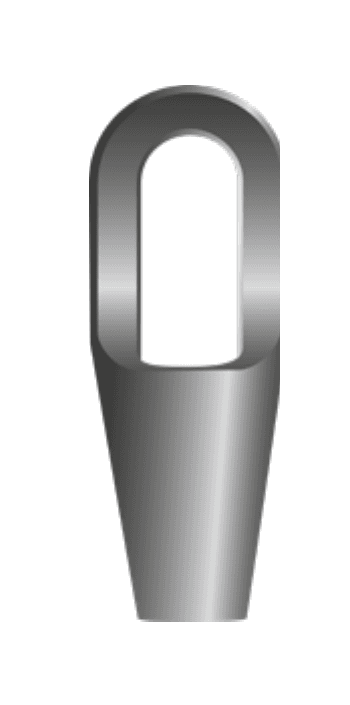

Green Pin® closed spelter socket — an end socket for permanent, high-efficiency wire-rope terminations, reaching up to 100% of the rope's breaking strength when resin-socketed. Forged in high-tensile steel, quenched and tempered, hot-dipped galvanized, rated −20°C to +200°C. Minimum breaking load 8–1300 t for rope Ø 6–130 mm. Recommended for use with Green Pin® Socket Lock socketing resin.
Specifications
- Category
- Fittings
- Subcategory
- Socket
- WLL / Range
- by rope size
- Type
- Closed spelter socket (resin-socketed termination)
- Material
- High-tensile steel, quenched & tempered
- Finish
- Hot-dipped galvanized
- MBL range
- 8 – 1300 t
- Rope diameter
- Ø 6 – 130 mm
- Temperature range
- −20°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 · CE IIA
- Part Number
- G-6411 … G-6429
- Brand
- Green Pin
- Standards / Certifications
- Hot-dip galvanizedCE IIA
